ADAQ4224BBCZ - Analog Devices

ADAQ4224BBCZ Details

• Manufacturer Part Number:

  ADAQ4224BBCZ

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

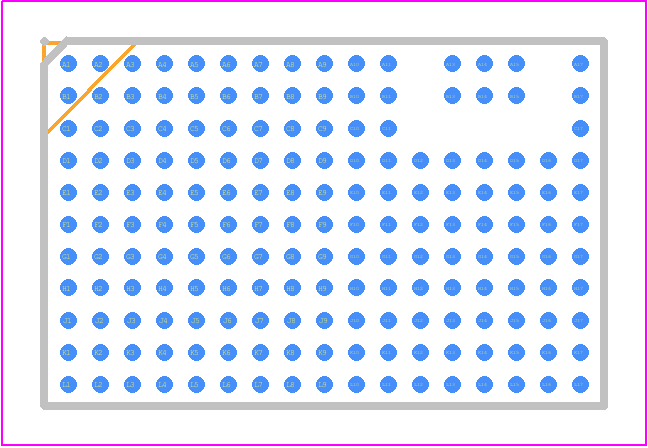

• Package Description:

  BGA-187/178

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Analog Input Voltage-Max:

  15 V

• Analog Input Voltage-Min:

  -15 V

• Conversion Time-Max:

  0.3 µs

• Converter Type:

  DATA ACQUISITION DEVICE

• JESD-30 Code:

  R-PBGA-B178

• Length:

  14 mm

• Linearity Error-Max (EL):

  0.0001%

• Number of Analog In Channels:

  1

• Number of Bits:

  24

• Number of Functions:

  1

• Number of Terminals:

  178

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  BINARY

• Output Format:

  SERIAL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FBGA

• Package Equivalence Code:

  BGA178,11X17,32

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, FINE PITCH

• Sample Rate:

  2 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  1.806 mm

• Supply Current-Max:

  7.5 mA

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  HYBRID

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  9 mm
