ADAS3023BCPZ-RL7 - Analog Devices

Description: Analog to Digital Converters - ADC Biopolar 1MSPS 16 bit DAS

Download ADAS3023BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

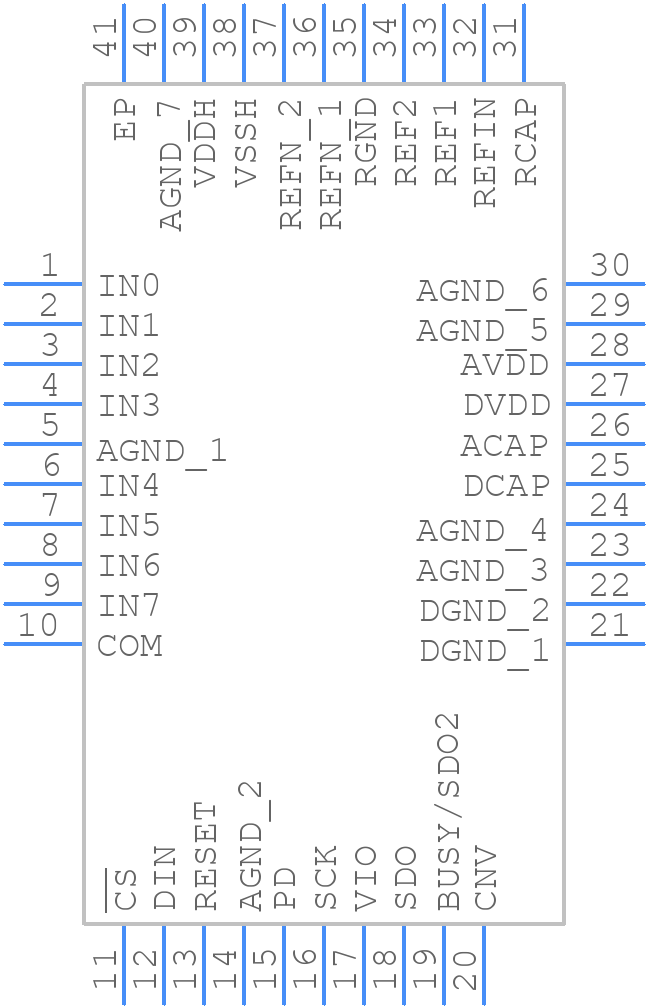

ADAS3023BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADAS3023BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-15-ren2
click to zoom
3D Models
ADAS3023BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-15-ren2
click to zoom

ADAS3023BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADAS3023BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CSP

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-15

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    20.52 V

  • Analog Input Voltage-Min:

    -20 V

  • Conversion Time-Max:

    6.79 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.125 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADAS3023BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the ADAS3023's performance. Analog Devices recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The datasheet provides a recommended layout, but it's also recommended to consult with Analog Devices' application notes and PCB layout guidelines for more detailed information.
  • Calibration of the ADAS3023 involves adjusting the offset and gain of the device to match the specific requirements of your application. Analog Devices provides a calibration procedure in the datasheet, which involves applying a known input signal and adjusting the offset and gain registers accordingly. Additionally, Analog Devices offers a calibration tool and software to simplify the process.
  • The maximum sampling rate of the ADAS3023 is 1 MSPS (million samples per second), but this can be limited by the system's clock frequency, the analog input bandwidth, and the digital interface. The datasheet provides more information on the sampling rate limitations and how to optimize the device for high-speed applications.
  • The ADAS3023's high-speed digital outputs require careful handling to avoid signal degradation and electromagnetic interference (EMI). Analog Devices recommends using a low-impedance transmission line, such as a 50-ohm microstrip or stripline, and to terminate the lines with a 50-ohm resistor to match the output impedance of the device.
  • The power consumption of the ADAS3023 depends on the operating mode, sampling rate, and supply voltage. The datasheet provides power consumption specifications, but to reduce power consumption, consider using the device's power-down modes, reducing the sampling rate, and optimizing the system's power supply. Additionally, Analog Devices offers power-saving features and techniques in their application notes.
