ADAS3023BCPZ - Analog Devices

Description: 16-Bit 8-Ch Data Acquisition Sys LFCSP40 Analog Devices ADAS3023BCPZ Data Acquisition System IC, 16 bit, 500ksps, 100ms, 40-Pin LFCSP

Download ADAS3023BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

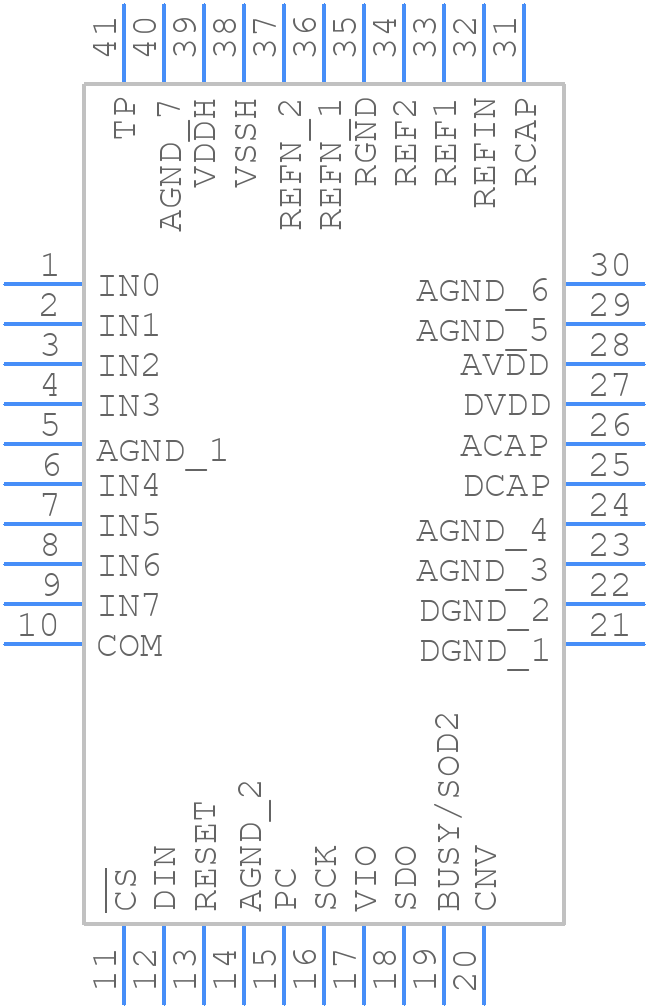

Symbol
ADAS3023BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADAS3023BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - cp-40-15-ren1
click to zoom
3D Models
ADAS3023BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - cp-40-15-ren1
click to zoom

ADAS3023BCPZ Details

  • Manufacturer Part Number:

    ADAS3023BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CSP

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-15

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    20.52 V

  • Analog Input Voltage-Min:

    -20 V

  • Conversion Time-Max:

    6.79 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.125 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADAS3023BCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and keep the power traces away from the analog signals.
  • To optimize for low-power operation, set the ADC clock frequency to the lowest possible value, use the lowest possible voltage reference, and disable the internal buffer amplifiers. Also, consider using the power-down mode when the ADC is not in use.
  • The recommended calibration procedure involves a full-scale calibration followed by a zero-scale calibration. The full-scale calibration involves applying a full-scale input voltage and adjusting the offset and gain registers to achieve the desired output code. The zero-scale calibration involves applying a zero-scale input voltage and adjusting the offset register to achieve the desired output code.
  • The ADAS3023BCPZ has a pipelined architecture, which means that there is a latency of 2-3 clock cycles between the input sample and the corresponding output code. To handle this latency, use a FIFO or a buffer to store the output data and synchronize it with the input data.
  • The recommended method for driving the analog input is to use a low-impedance source, such as an op-amp or a buffer amplifier, to drive the input signal. This ensures that the input signal is not attenuated or distorted by the ADC's input impedance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADAS3023BCPZ Overview

Use the download button to access the ADAS3023BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADAS3, or try a keyword search, such as Analog to Digital Converters
