ADBMS2950WCCSZ footprint, schematic symbol and 3D model by Analog Devices

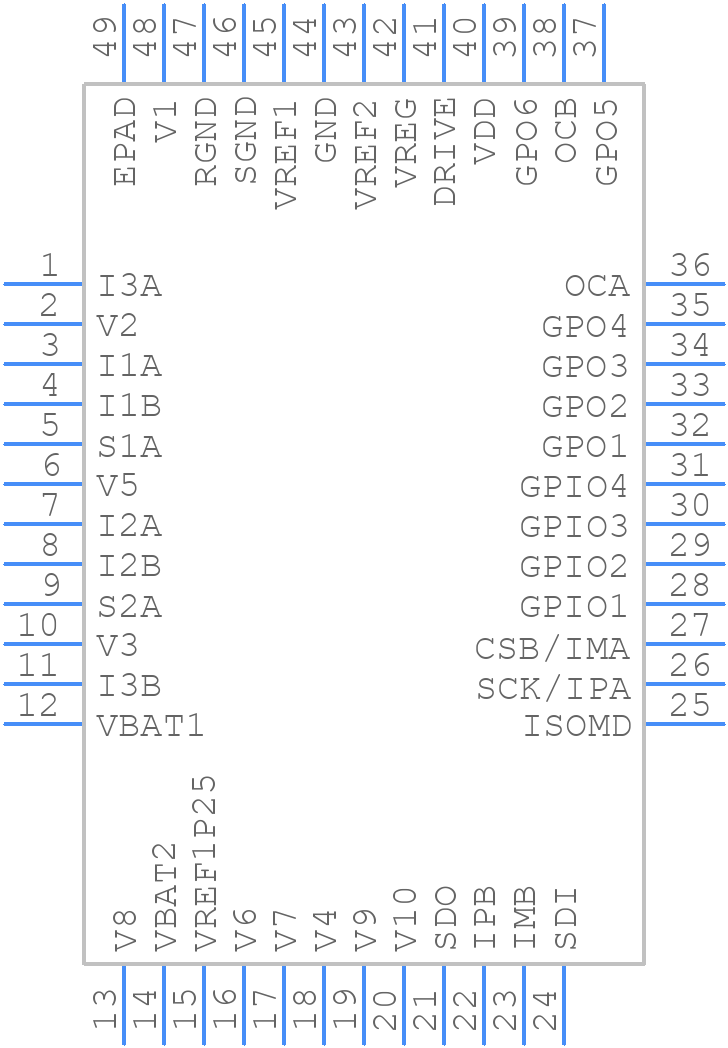

Symbol

click to zoom

PCB Footprints

ADBMS2950WCCSZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-QFN

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADBMS2950WCCSZ
Part Number ADBMS2950WCCSZ
Manufacturer Analog Devices
Pin Count 49
Part Category Diode ESD (Uni-directional)
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 48-QFN
Last Modified Date Nov 15, 2025 5:12 PM UTC
Pinout / Pin List Click Here (Member Only)

ADBMS2950WCCSZ Details

Manufacturer Part Number:
ADBMS2950WCCSZ
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
LFCSP SIDESOLDERABLE
Package Description:
QFN-48
Pin Count:
48
Manufacturer Package Code:
LFCSP SIDESOLDERABLE
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Date Of Intro:
2022-12-16
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Adjustable Threshold:
NO
Analog IC - Other Type:
BATTERY MONITOR
JESD-30 Code:
S-PQCC-N48
Length:
7 mm
Moisture Sensitivity Level:
3
Number of Channels:
10
Number of Functions:
1
Number of Terminals:
48
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC48,.27SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm

ADBMS2950WCCSZ Frequently Asked Questions (FAQs)

A good PCB layout is crucial for optimal performance. Analog Devices recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Additionally, it's essential to follow proper decoupling and shielding techniques to minimize noise and interference.
Proper calibration is critical for accurate measurements. Analog Devices recommends following the calibration procedure outlined in the datasheet, which involves applying a known input signal and adjusting the internal calibration registers accordingly. It's also essential to recalibrate the device after any changes to the system or environment.
The ADBMS2950WCCSZ is rated for operation from -40°C to +125°C. However, it's essential to note that the device's accuracy and performance may degrade at extreme temperatures. It's recommended to operate the device within the specified temperature range for optimal performance.
The ADBMS2950WCCSZ has a SPI-compatible interface, which can be easily interfaced with most microcontrollers or FPGAs. Analog Devices provides example code and interface diagrams in the datasheet and application notes to help with the integration process.
The ADBMS2950WCCSZ has a typical power consumption of 35 mW. To minimize power consumption, it's recommended to use the device's power-down mode when not in use, and to optimize the system's power supply and clock frequencies. Additionally, using a low-power microcontroller or FPGA can also help reduce overall system power consumption.
