ADBMS6830BCSWZ - Analog Devices

Description: Battery Management 16 Channel Multicell Battery

Download ADBMS6830BCSWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADBMS6830BCSWZ - Analog Devices - PCB symbol
click to zoom

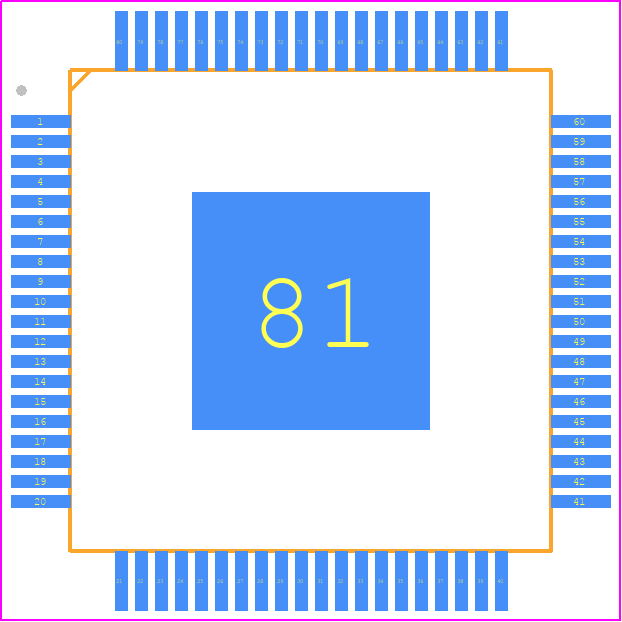

PCB Footprints
ADBMS6830BCSWZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ADBMS6830BCSWZ
click to zoom
3D Models
ADBMS6830BCSWZ - Analog Devices - 3D model - Quad Flat Packages - ADBMS6830BCSWZ
click to zoom

ADBMS6830BCSWZ Details

  • Manufacturer Part Number:

    ADBMS6830BCSWZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-80

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    S-PQFP-G80

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    80

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP80,.6SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max (Isup):

    0.65 mA

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    11 V

  • Supply Voltage-Nom (Vsup):

    40 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    12 mm

ADBMS6830BCSWZ Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide in their application note AN-1329, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ADBMS6830BCSWZ is a highly configurable device, and Analog Devices provides a software development kit (SDK) and evaluation software that allows users to configure the device for various sensor types and applications, including magnetometers, accelerometers, and gyroscopes.
  • The ADBMS6830BCSWZ is rated for operation over a temperature range of -40°C to +125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • Calibration of the ADBMS6830BCSWZ typically involves a combination of factory calibration and user calibration. Analog Devices provides guidelines for calibration in their application notes and datasheets, and users can also use the evaluation software to perform calibration and compensation for temperature and other environmental factors.
  • The typical power consumption of the ADBMS6830BCSWZ is around 10mA to 20mA, depending on the operating mode and frequency. However, this can vary depending on the specific application and use case, and users should consult the datasheet and application notes for more detailed information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADBMS6830BCSWZ Overview

Use the download button to access the ADBMS6830BCSWZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADBMS, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
