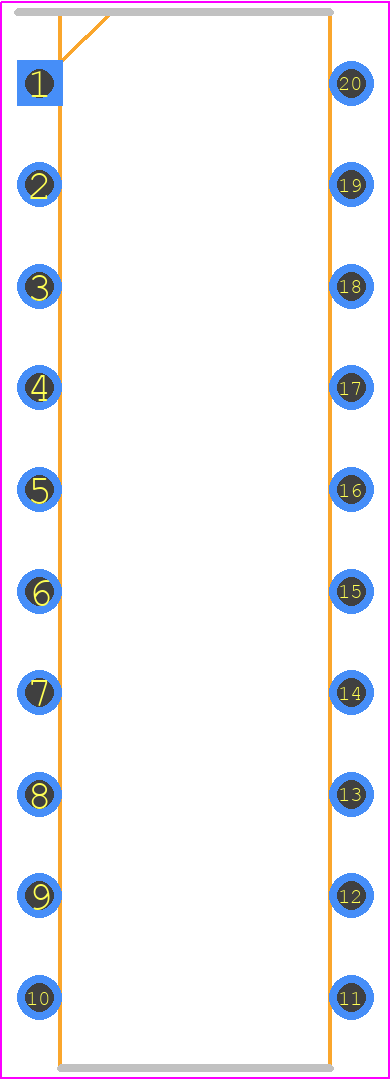

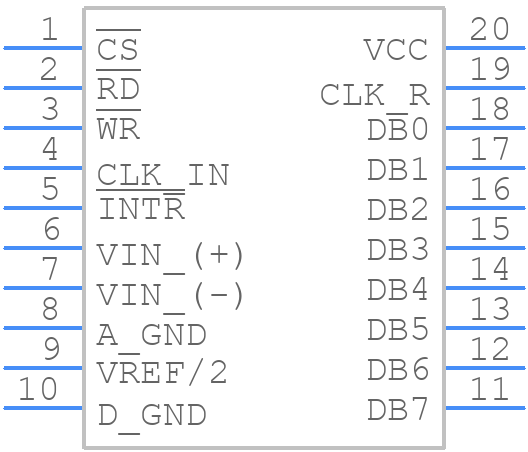

ADC0802LCN - Texas Instruments

ADC0802LCN Frequently Asked Questions (FAQs)

• What is the maximum clock frequency for the ADC0802LCN?
  The maximum clock frequency for the ADC0802LCN is 640 kHz. However, it's recommended to operate at a clock frequency of 550 kHz or less to ensure accurate conversions.
• How do I handle the output data from the ADC0802LCN?
  The ADC0802LCN outputs data in a tri-state format, which means it can be connected directly to a microprocessor's data bus. The output data is valid on the rising edge of the clock signal (CLKIN). You can use a microprocessor or a dedicated IC to latch and process the output data.
• What is the purpose of the RD (Read) pin?
  The RD (Read) pin is an active-low input that enables the output tri-state buffers when it's low. When RD is high, the output buffers are in a high-impedance state, allowing other devices to access the data bus. When RD is low, the output buffers are enabled, and the ADC0802LCN outputs the converted data.
• How do I convert the output code to a digital value?
  The ADC0802LCN outputs an 8-bit binary code that represents the analog input voltage. To convert the output code to a digital value, you can use the following formula: Digital Value = (Output Code / 256) * (VREF+ - VREF-) + VREF-, where VREF+ and VREF- are the reference voltages.
• What is the effect of the INTR (Interrupt) pin on the ADC0802LCN's operation?
  The INTR (Interrupt) pin is an active-low output that goes low when the conversion is complete and the output data is valid. It can be used to interrupt a microprocessor or generate a signal to latch the output data. The INTR pin has no effect on the ADC0802LCN's operation, but it can be used to synchronize the data acquisition process.
