ADC0803LCN - Renesas Electronics

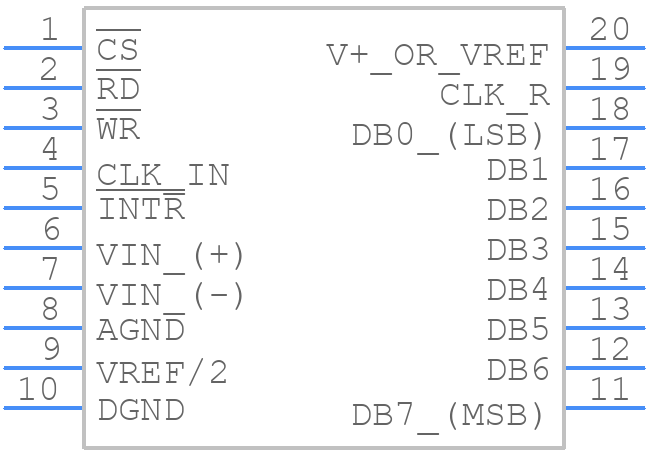

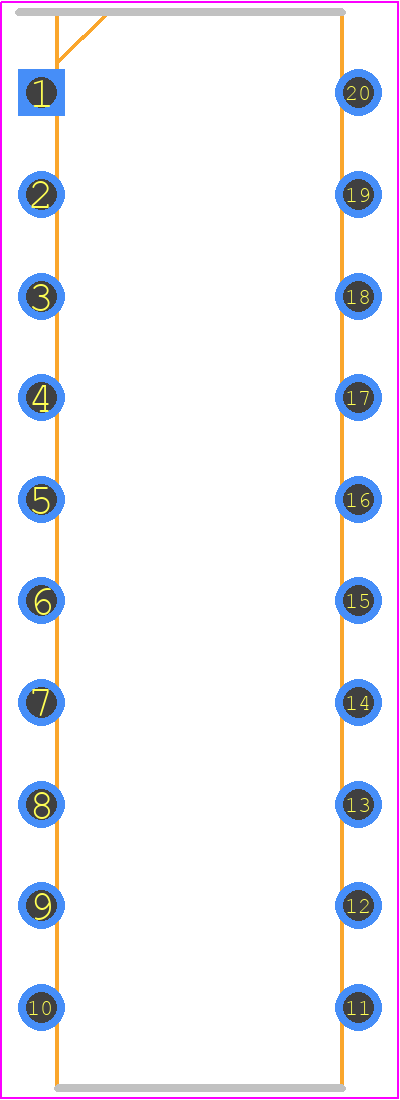

ADC0803LCN Details

• Manufacturer Part Number:

  ADC0803LCN

• Part Life Cycle Code:

  Obsolete

• Package Description:

  DIP-20

• HTS Code:

  8542.39.00.30

• Date Of Intro:

  2017-09-15

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Analog Input Voltage-Max:

  5.05 V

• Analog Input Voltage-Min:

  -0.05 V

• Conversion Time-Max:

  114.06 µs

• Converter Type:

  ADC, SUCCESSIVE APPROXIMATION

• JESD-30 Code:

  R-PDIP-T20

• Length:

  25.895 mm

• Linearity Error-Max (EL):

  0.19531%

• Number of Analog In Channels:

  2

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  70 °C

• Output Bit Code:

  BINARY

• Output Format:

  PARALLEL, 8 BITS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Seated Height-Max:

  5.33 mm

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
