The maximum clock frequency for the ADC0804 is 640 kHz. However, it's recommended to operate at a clock frequency of 640 kHz or less to ensure accurate conversions.
The ADC0804 outputs data in a serial format, with the most significant bit (MSB) first. The output data is valid on the falling edge of the clock signal. You can use a microcontroller or a dedicated IC to handle the output data and convert it to a parallel format if needed.
The RD (Read) pin is an active-low input that enables the output tri-state buffers. When RD is low, the output buffers are enabled, and the converted data is available at the output pins. When RD is high, the output buffers are disabled, and the output pins are in a high-impedance state.
To ensure accurate conversions, make sure to follow the recommended operating conditions, such as supply voltage, clock frequency, and input voltage range. Also, ensure that the input signal is properly filtered and buffered to prevent noise and distortion. Additionally, use a stable clock source and ensure that the clock signal is clean and free of noise.
Yes, the ADC0804 can be used with a single-ended input signal. However, keep in mind that the ADC0804 is a differential ADC, and using a single-ended input signal will reduce the common-mode rejection ratio (CMRR) of the ADC. To achieve the best performance, it's recommended to use a differential input signal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC0804LCWM/NOPB Overview

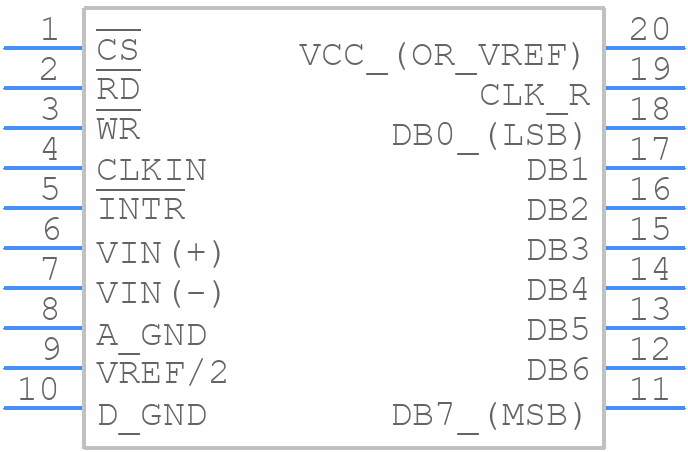

Use the download button to access the ADC0804LCWM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC08,
or try a keyword search, such as Analog to Digital Converters
