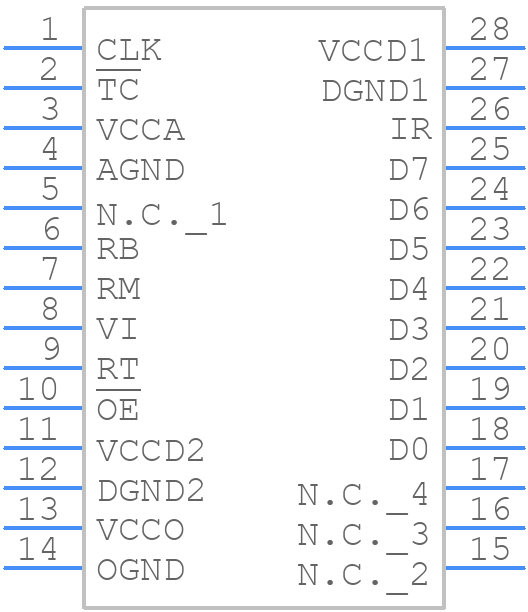

ADC0804S030TS/C1,1 - NXP

ADC0804S030TS/C1,1 Details

• Manufacturer Part Number:

  ADC0804S030TS/C1,1

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Contact Manufacturer

• Part Package Code:

  SSOP

• Package Description:

  SSOP,

• Pin Count:

  28

• Reach Compliance Code:

  Compliant

• Manufacturer:

  NXP Semiconductors

• Analog Input Voltage-Max:

  2.55 V

• Analog Input Voltage-Min:

  1.7 V

• Converter Type:

  ADC, RESISTANCE LADDER

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e4

• Length:

  10.2 mm

• Linearity Error-Max (EL):

  0.1953%

• Moisture Sensitivity Level:

  1

• Number of Analog In Channels:

  1

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  70 °C

• Output Bit Code:

  BINARY, 2'S COMPLEMENT BINARY

• Output Format:

  PARALLEL, 8 BITS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  30 MHz

• Seated Height-Max:

  2 mm

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  5.3 mm
