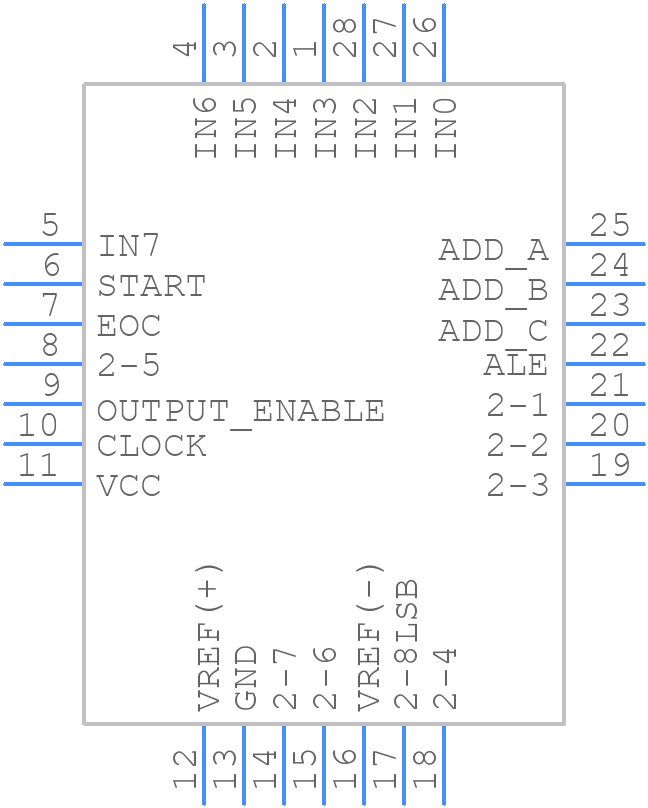

ADC0809CCV/NOPB - Texas Instruments

ADC0809CCV/NOPB Details

• Manufacturer Part Number:

  ADC0809CCV/NOPB

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QLCC

• Pin Count:

  28

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog Input Voltage-Max:

  6 V

• Analog Input Voltage-Min:

  4.5 V

• Conversion Time-Max:

  116 µs

• Converter Type:

  ADC, SUCCESSIVE APPROXIMATION

• JESD-30 Code:

  S-PQCC-J28

• JESD-609 Code:

  e3

• Length:

  11.505 mm

• Linearity Error-Max (EL):

  0.4883%

• Moisture Sensitivity Level:

  2A

• Number of Analog In Channels:

  8

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  BINARY

• Output Format:

  PARALLEL, 8 BITS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC28,.5SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• Sample Rate:

  0.01 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  4.57 mm

• Supply Current-Max:

  3 mA

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  11.505 mm
