- Part Number ADC08100CIMTC
- Manufacturer Texas Instruments
- Pin Count 24
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PW0024A
- Released Date Apr 16, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADC08100CIMTC Details
-
Manufacturer Part Number:
ADC08100CIMTC
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
TSSOP
-
Package Description:
TSSOP-24
-
Pin Count:
24
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
ADC08100CIMTC Frequently Asked Questions (FAQs)
-
The recommended input impedance for the ADC08100CIMTC is 1 kΩ to 10 kΩ. This ensures proper signal attenuation and prevents signal reflections.
-
The ADC08100CIMTC requires a clock signal with a frequency range of 1 MHz to 10 MHz. The clock signal should be a clean, low-jitter signal with a duty cycle of 40% to 60%. It's recommended to use a dedicated clock source or a clock buffer to ensure a stable clock signal.
-
The maximum sampling rate of the ADC08100CIMTC is 500 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the clock frequency, input signal bandwidth, and system noise.
-
The ADC08100CIMTC outputs digital data in a serial format, with a maximum data rate of 10 Mbps. The digital output data should be captured and processed by a microcontroller or FPGA, taking into account the data format, word length, and timing requirements.
-
The power consumption of the ADC08100CIMTC depends on the operating mode, clock frequency, and supply voltage. In normal operation, the typical power consumption is around 15 mW at 3.3 V supply voltage and 5 MHz clock frequency. However, power consumption can be reduced in power-down mode or with dynamic power scaling.
Trust Checks
Community Provided
System Verified
Community Approved
ADC08100CIMTC Overview

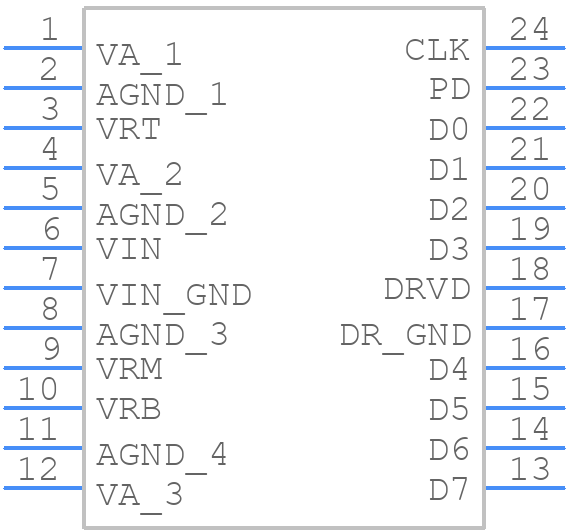

Use the download button to access the ADC08100CIMTC schematic symbol, PCB footprint, and 3D model.
