ADC081500CIYB - Texas Instruments

Description: Low Power, 8-Bit, 1.5 GSPS A/D Converter

Download ADC081500CIYB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADC081500CIYB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

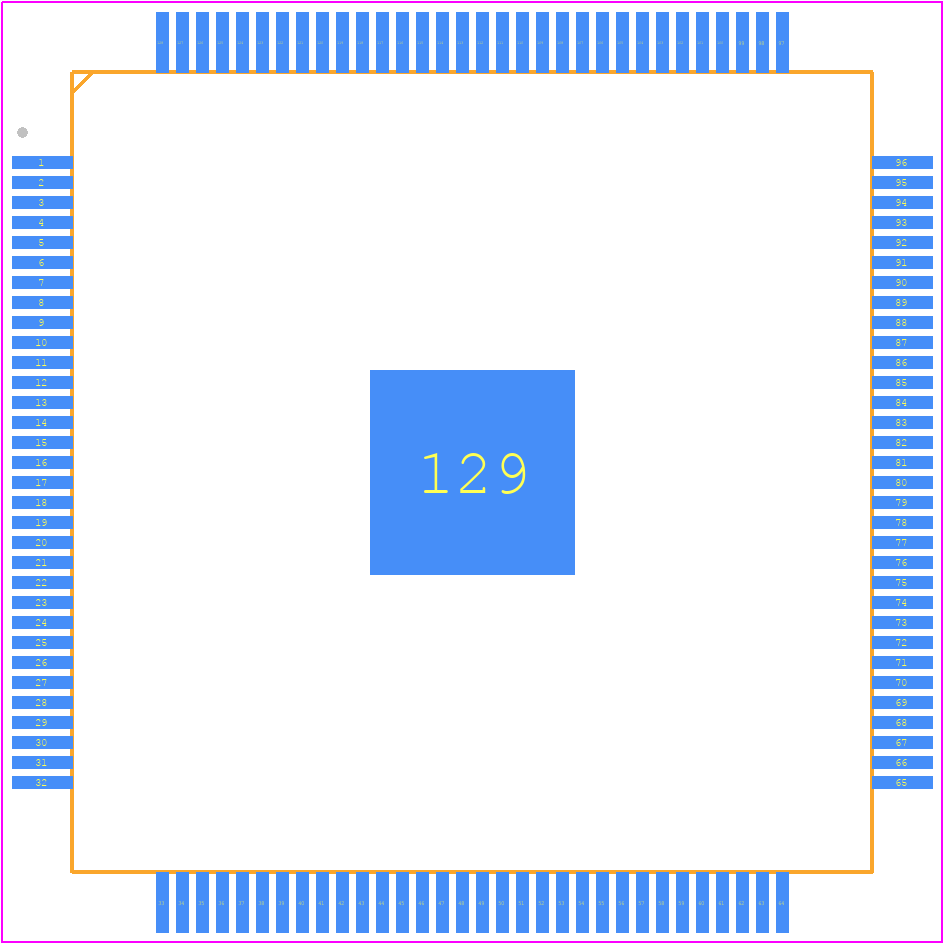

ADC081500CIYB - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - NNB0128A
click to zoom
3D Models
ADC081500CIYB - Texas Instruments - 3D model - Quad Flat Packages - NNB0128A
click to zoom

ADC081500CIYB Details

  • Manufacturer Part Number:

    ADC081500CIYB

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    MS-026BFB, LQFP-128

  • Pin Count:

    128

  • ECCN Code:

    3A991.c.1

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    1.31 V

  • Analog Input Voltage-Min:

    1.21 V

  • Conversion Time-Max:

    0.0006 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQFP-G128

  • Length:

    20 mm

  • Linearity Error-Max (EL):

    0.3516%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP128,.87SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1500 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    600 mA

  • Supply Voltage-Nom:

    1.9 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    20 mm

ADC081500CIYB Frequently Asked Questions (FAQs)

  • The recommended input impedance for the ADC081500CIYB is 1 kΩ to 10 kΩ. This ensures proper signal attenuation and prevents signal reflections.
  • The ADC081500CIYB requires a clock signal with a frequency range of 1 MHz to 10 MHz. The clock signal should be a clean, low-jitter signal with a duty cycle of 40% to 60%. It's recommended to use a dedicated clock source or a clock buffer to ensure a stable clock signal.
  • The ADC081500CIYB's performance is affected by temperature. The device's accuracy and linearity may degrade at high temperatures (above 85°C) or low temperatures (below -40°C). It's recommended to operate the device within the specified temperature range (−40°C to 125°C) for optimal performance.
  • Proper power supply decoupling is crucial for the ADC081500CIYB's performance. It's recommended to use a 0.1 μF ceramic capacitor and a 10 μF tantalum capacitor in parallel, placed close to the device's power pins, to filter out noise and ensure a stable power supply.
  • The recommended layout and routing for the ADC081500CIYB involves keeping the analog and digital signals separate, using a ground plane, and minimizing signal traces near the device's pins. It's also recommended to use a 4-layer PCB with a dedicated analog ground layer to reduce noise and interference.
