ADC08200CIMT - Texas Instruments

Description: 8-bit A/D converter,ADC08200CIMT 200MSPS

Download ADC08200CIMT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

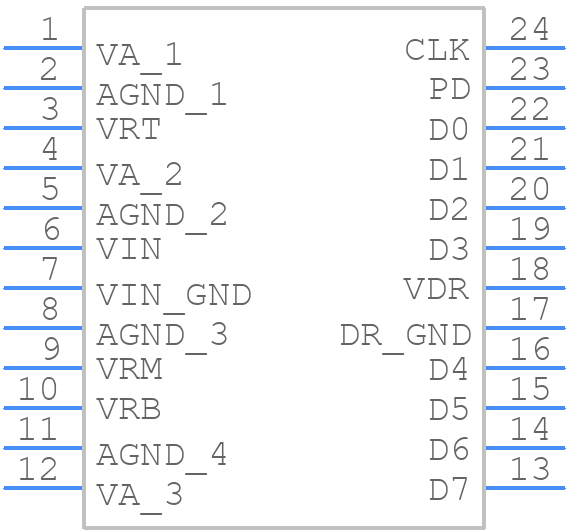

ADC08200CIMT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC08200CIMT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0024A
click to zoom
3D Models
ADC08200CIMT - Texas Instruments - 3D model - Small Outline Packages - PW0024A
click to zoom

ADC08200CIMT Details

  • Manufacturer Part Number:

    ADC08200CIMT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 1.6

  • Analog Input Voltage-Max:

    1.6 V

  • Analog Input Voltage-Min:

    -1.6 V

  • Conversion Time-Max:

    0.004 µs

  • Converter Type:

    ADC, RESISTANCE LADDER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e0

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.7422%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    200 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    86 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADC08200CIMT Frequently Asked Questions (FAQs)

  • The recommended input impedance for the ADC08200CIMT is 1 kΩ to 10 kΩ. This ensures proper signal attenuation and prevents signal reflections.
  • To optimize the analog input range, consider the maximum and minimum input voltages of your signal. The ADC08200CIMT has a maximum input voltage of VREF (2.5V or 5V) and a minimum input voltage of 0V. Adjust the input signal to fall within this range for optimal performance.
  • Clock jitter can affect the ADC08200CIMT's performance by introducing noise and reducing the signal-to-noise ratio (SNR). To minimize the impact of clock jitter, use a high-quality clock source with low jitter (<100 ps) and ensure the clock signal is properly terminated.
  • Metastability issues can occur when the ADC08200CIMT's output is not properly synchronized with the clock. To handle metastability, use a synchronizer circuit or a metastable-resistant flip-flop to ensure proper synchronization and prevent data corruption.
  • To minimize noise and interference, keep analog and digital signals separate, use separate power planes for analog and digital supplies, and avoid crossing analog and digital signal traces. Use a star-grounding scheme and decouple the power supplies with capacitors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADC08200CIMT Overview

Use the download button to access the ADC08200CIMT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC08, or try a keyword search, such as Analog to Digital Converters
