ADC0820CCN - Texas Instruments

Description: 8 Bit Analog to Digital Converter 1 Input 1 Flash 20-DIP

Download ADC0820CCN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

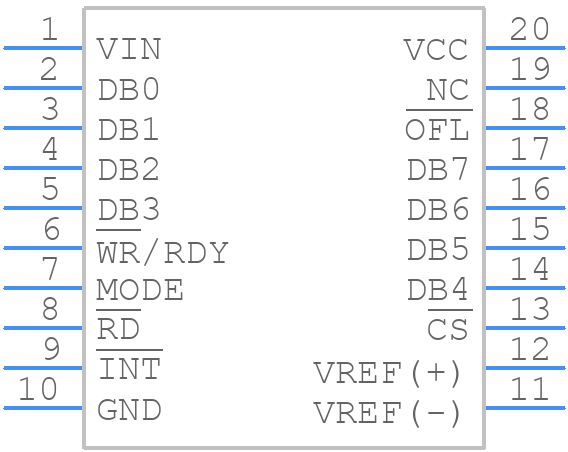

ADC0820CCN - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC0820CCN - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - LM1036N/NOPB-1
click to zoom
3D Models
ADC0820CCN - Texas Instruments - 3D model - Dual-In-Line Packages - LM1036N/NOPB-1
click to zoom

ADC0820CCN Details

  • Manufacturer Part Number:

    ADC0820CCN

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-20

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    5.1 V

  • Analog Input Voltage-Min:

    -0.1 V

  • Conversion Time-Max:

    2.5 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e0

  • Length:

    24.325 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.625 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ADC0820CCN Frequently Asked Questions (FAQs)

  • The recommended input impedance for the ADC0820CCN is 1 kΩ to 10 kΩ. This ensures that the input signal is properly terminated and minimizes signal reflections.
  • The ADC0820CCN requires a clock signal with a frequency between 1 MHz and 20 MHz. The clock signal should be a clean, low-jitter signal with a duty cycle of 40% to 60%. It's recommended to use a dedicated clock source or a clock buffer to ensure a stable clock signal.
  • The maximum sampling rate of the ADC0820CCN is 200 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the clock frequency, input signal bandwidth, and other system-level factors.
  • The ADC0820CCN outputs data in a serial format, with each conversion result represented by 8 bits. The output data is in two's complement format, with the most significant bit (MSB) indicating the sign of the result. The output data can be accessed through the SPI-compatible interface.
  • The power consumption of the ADC0820CCN depends on the operating mode and clock frequency. In normal operation, the typical power consumption is around 15 mW at 5 V supply voltage and 10 MHz clock frequency. In power-down mode, the power consumption is typically less than 1 μW.
