ADC0834CCN - Texas Instruments

Description: Analog to Digital Converters - ADC 8-Bit Serial I/O A/D Converter with Multiplexer Option 14-PDIP -40 to 85

Download ADC0834CCN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

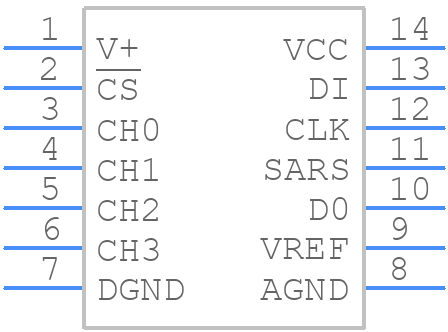

ADC0834CCN - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

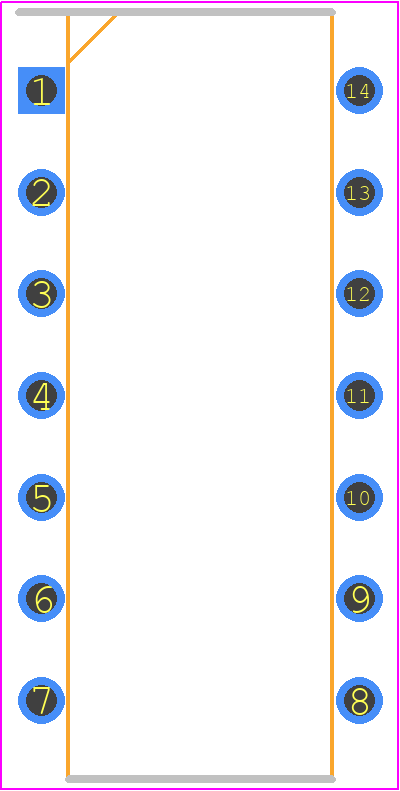

ADC0834CCN - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - NFF0014A
click to zoom
3D Models
ADC0834CCN - Texas Instruments - 3D model - Dual-In-Line Packages - NFF0014A
click to zoom

ADC0834CCN Details

  • Manufacturer Part Number:

    ADC0834CCN

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-14

  • Pin Count:

    14

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    6.35 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Conversion Time-Max:

    32 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    19.049 mm

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    4

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    5.334 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ADC0834CCN Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the ADC0834CCN is 640 kHz. However, it's recommended to operate the device at a clock frequency of 100 kHz to 500 kHz for optimal performance.
  • The ADC0834CCN outputs data in a binary format, with the most significant bit (MSB) first. The output data is 8 bits wide, with the 2 most significant bits being '0' and the remaining 6 bits representing the analog-to-digital conversion result.
  • The VREF/2 input pin is used to set the reference voltage for the ADC. It's recommended to connect this pin to a voltage source that is half of the supply voltage (VCC) to ensure optimal performance.
  • To convert the ADC output code to a voltage value, you need to know the reference voltage (VREF) and the supply voltage (VCC). The formula to convert the output code to a voltage value is: Voltage = (VREF x Output Code) / 64.
  • The power consumption of the ADC0834CCN depends on the operating frequency and supply voltage. At a clock frequency of 100 kHz and a supply voltage of 5V, the typical power consumption is around 15 mW.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADC0834CCN Overview

Use the download button to access the ADC0834CCN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC08, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
