Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADC0834CCWM
- Part Number ADC0834CCWM
- Manufacturer Texas Instruments
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P1032X264-14N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADC0834CCWM Details
-
Manufacturer Part Number:
ADC0834CCWM
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOP-14
-
Pin Count:
14
-
HTS Code:
8542.39.00.30
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Analog Input Voltage-Max:
6.35 V
ADC0834CCWM Frequently Asked Questions (FAQs)
-
The recommended clock frequency for the ADC0834CCWM is between 100 kHz to 640 kHz. However, the device can operate at clock frequencies up to 1 MHz, but with reduced accuracy and increased noise sensitivity.
-
The ADC0834CCWM outputs data in a serial format, with the most significant bit (MSB) first. The output data is an 8-bit binary code, with the highest 4 bits representing the channel number and the lowest 4 bits representing the converted analog value. You'll need to use a microcontroller or other digital logic to decode and process the output data.
-
Yes, the ADC0834CCWM can be used with single-ended analog inputs. However, you'll need to tie the negative input (IN-) to a fixed reference voltage, such as ground or a voltage divider, to create a pseudo-differential input. This will allow the ADC to convert the single-ended input signal.
-
The ADC0834CCWM can be powered from a single 5V supply, with a recommended operating range of 4.5V to 5.5V. You'll also need to provide a decoupling capacitor (typically 0.1 uF) between the VCC pin and ground to filter out noise and ensure stable operation.
-
The conversion time of the ADC0834CCWM is approximately 100 microseconds (us) per channel, assuming a clock frequency of 640 kHz. This means that the ADC can convert all 4 channels in about 400 us.
Trust Checks
System Verified
ADC0834CCWM Overview

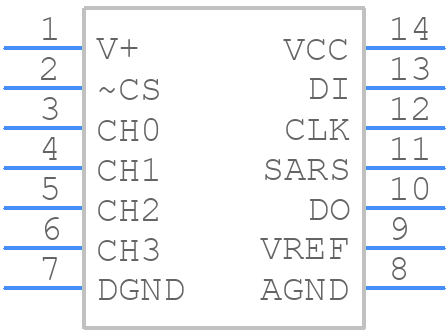

Use the download button to access the ADC0834CCWM schematic symbol and PCB footprint.
