ADC0848CCV - Texas Instruments

Description: A/D Converters

Download ADC0848CCV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

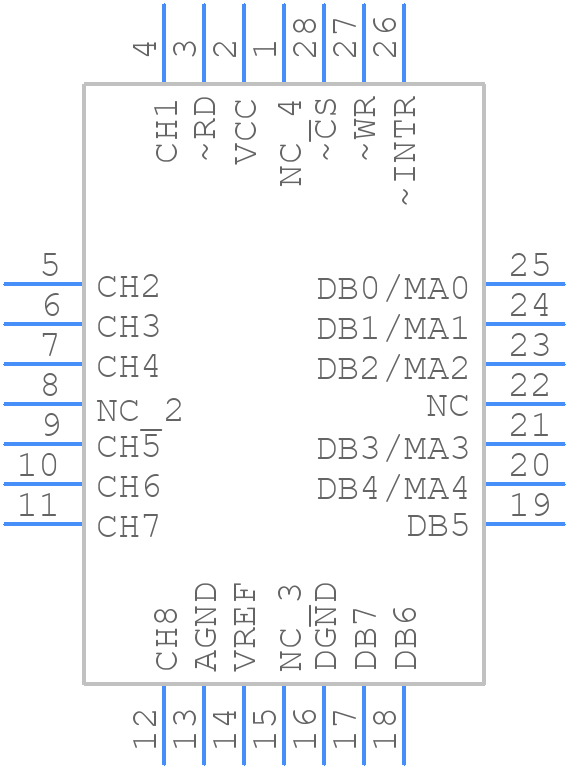

Symbol
ADC0848CCV - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC0848CCV - Texas Instruments PCB footprint - Other - Other - PLCC127P1245X1245X457-28N
click to zoom

ADC0848CCV Details

  • Manufacturer Part Number:

    ADC0848CCV

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QLCC

  • Package Description:

    LCC-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    60 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-J28

  • JESD-609 Code:

    e0

  • Length:

    11.43 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    2A

  • Number of Analog In Channels:

    8

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC28,.5SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.033 MHz

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    4.57 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    11.43 mm

ADC0848CCV Frequently Asked Questions (FAQs)

  • The recommended input impedance for the ADC0848CCV is 1 kΩ to 10 kΩ. This ensures that the input signal is properly terminated and minimizes signal reflections.
  • The ADC0848CCV requires a clock signal with a frequency between 1 MHz and 20 MHz. The clock signal should be a clean, low-jitter signal with a duty cycle of 40% to 60%. It's recommended to use a dedicated clock source or a clock buffer to ensure a stable clock signal.
  • The maximum conversion rate of the ADC0848CCV is 200 kHz. However, the actual conversion rate may be limited by the clock frequency, input signal bandwidth, and other system-level factors.
  • The ADC0848CCV outputs data in a serial format, with each conversion result consisting of 8 bits. The output data is in two's complement format, with the most significant bit (MSB) first. The output data can be accessed through the SPI-compatible interface.
  • The power consumption of the ADC0848CCV depends on the operating mode and clock frequency. In normal operation, the typical power consumption is around 15 mW at 3.3 V supply voltage and 10 MHz clock frequency. In power-down mode, the power consumption is typically less than 1 μW.
