The recommended clock source is a low-jitter, high-frequency clock (e.g., 100 MHz) to ensure optimal performance. A clock source with a jitter of less than 100 ps is recommended.
To optimize power consumption, use the lowest possible clock frequency, disable the internal reference voltage, and use the power-down mode when not converting. Additionally, consider using a lower supply voltage (e.g., 1.8 V) if possible.
The maximum input frequency is limited by the Nyquist theorem, which states that the sampling frequency must be at least twice the input frequency. For the ADC08D1000CIYB, the maximum input frequency is approximately 400 MHz (half of the maximum sampling frequency of 800 MSPS).
Metastability can occur when the ADC's output data is not stable within the specified setup and hold times. To handle metastability, use a synchronizer or a metastability resolver circuit, or implement a double-data-rate (DDR) interface to reduce the impact of metastability.
To minimize noise and ensure optimal performance, keep analog and digital signals separate, use a solid ground plane, and route analog signals away from digital signals. Use a low-impedance path for the analog input signals and a high-impedance path for the clock signal.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADC08D1000CIYB Overview

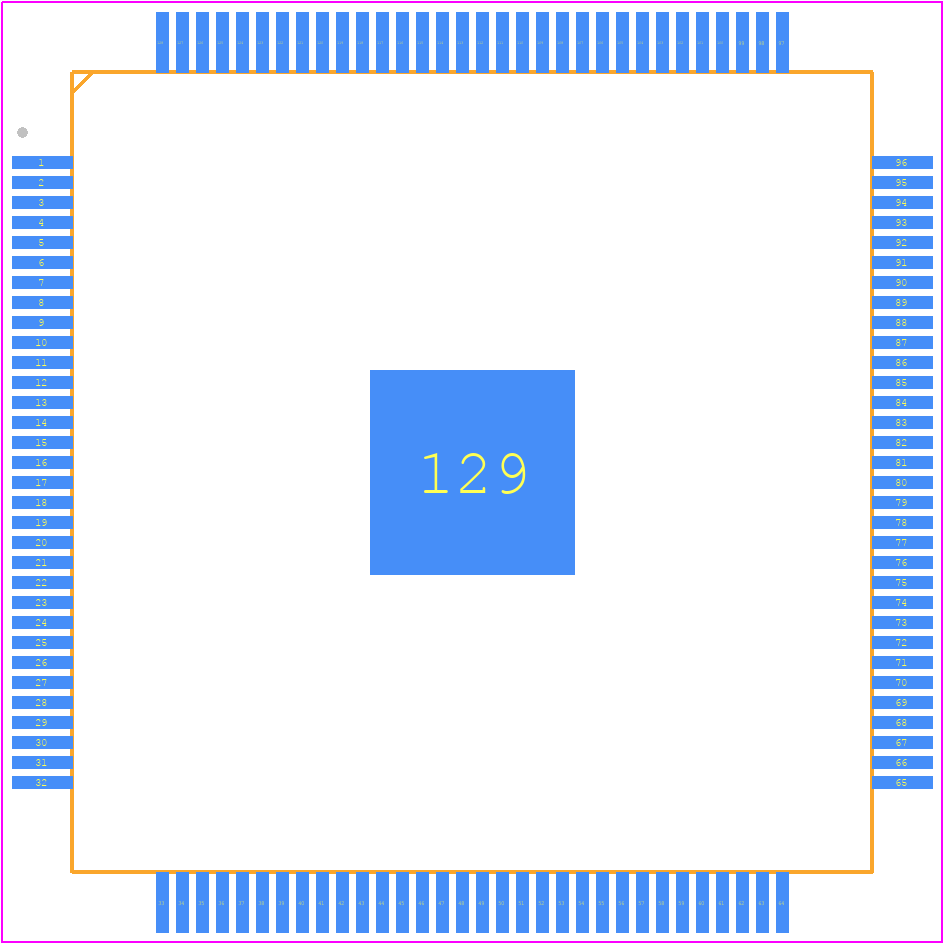

Use the download button to access the ADC08D1000CIYB schematic symbol, PCB footprint, and 3D model.
