ADC08D500CIYB/NOPB - Texas Instruments

ADC08D500CIYB/NOPB Details

• Manufacturer Part Number:

  ADC08D500CIYB/NOPB

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

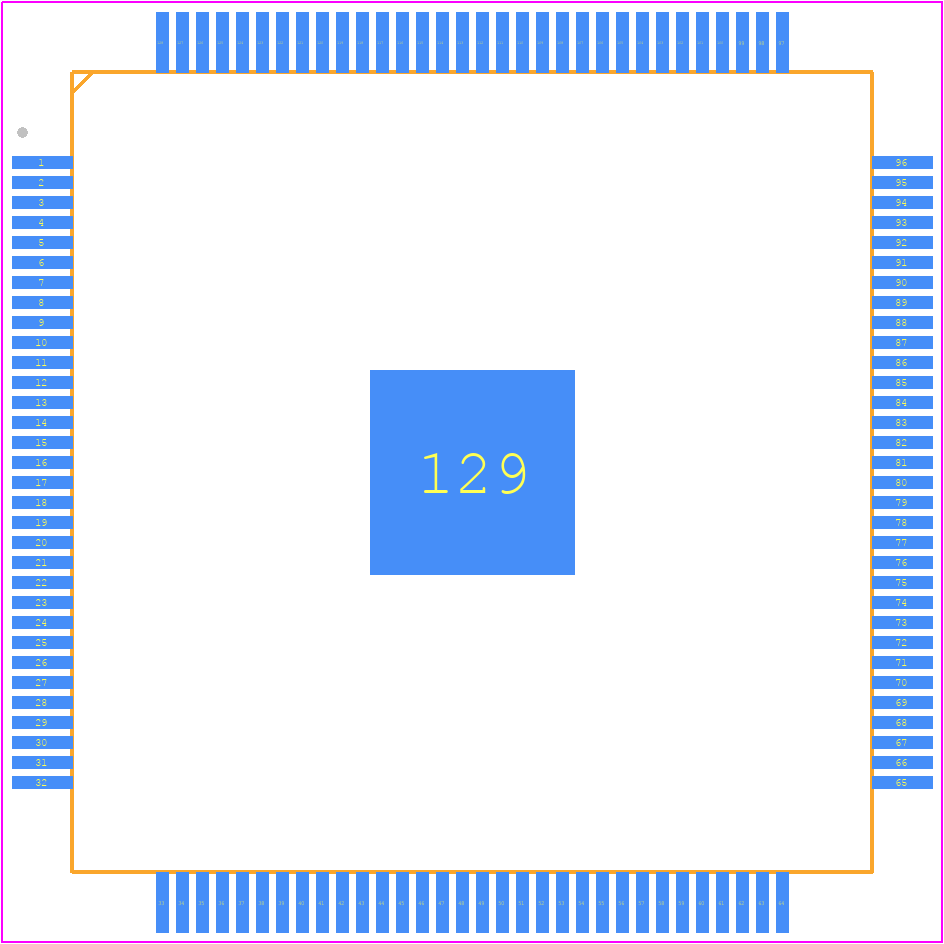

• Part Package Code:

  QFP

• Package Description:

  HLFQFP-128

• Pin Count:

  128

• ECCN Code:

  3A991.C.1

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  Peak-to-peak input voltage range(V) : 0.87

• Analog Input Voltage-Max:

  0.95 V

• Analog Input Voltage-Min:

  -0.95 V

• Conversion Time-Max:

  0.002 µs

• Converter Type:

  ADC, PROPRIETARY METHOD

• JESD-30 Code:

  S-PQFP-G128

• JESD-609 Code:

  e3

• Length:

  20 mm

• Linearity Error-Max (EL):

  0.3516%

• Moisture Sensitivity Level:

  3

• Number of Analog In Channels:

  2

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  128

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  OFFSET BINARY

• Output Format:

  PARALLEL, 8 BITS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLFQFP

• Package Equivalence Code:

  QFP128,.87SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  500 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  1.6 mm

• Supply Current-Max:

  665 mA

• Supply Voltage-Nom:

  1.9 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  20 mm
