Texas Instruments provides a layout and routing guide in the application note SLAA523, which provides detailed recommendations for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
The clock signal should be a low-jitter, high-frequency clock (typically 10-20 MHz) with a 50% duty cycle. A clock buffer or a dedicated clock source is recommended to minimize jitter. Additionally, the clock signal should be routed close to the ADC and away from noisy signals.
A decoupling scheme with a combination of ceramic and electrolytic capacitors is recommended. A 0.1 μF ceramic capacitor should be placed close to the power pins, and a 10 μF electrolytic capacitor should be placed further away from the power pins. This scheme helps to filter out high-frequency noise and ensure stable power supply.
The ADC08L060CIMTX/NOPB has a parallel output interface that can be connected to a microcontroller or FPGA. The interface requires a minimum of 8-10 bits of data bus width, and the microcontroller or FPGA should be able to handle the data transfer rate of the ADC. Texas Instruments provides example code and interface guidelines in the datasheet and application notes.
The ADC08L060CIMTX/NOPB has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be mounted on a PCB with a thermal pad, and a heat sink or thermal vias can be used to dissipate heat. The device should be operated within the recommended temperature range, and thermal monitoring is recommended to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC08L060CIMTX/NOPB Overview

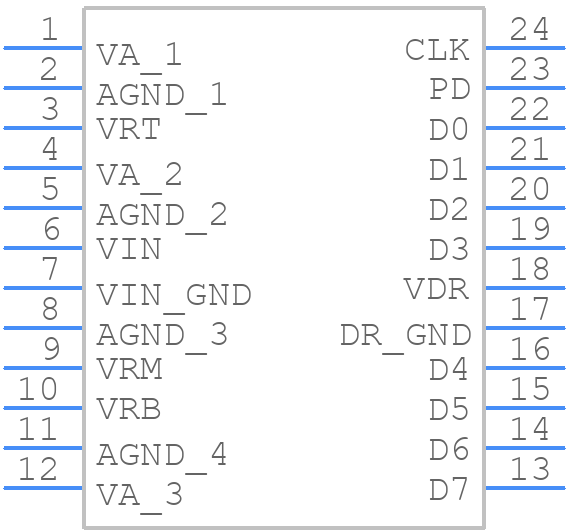

Use the download button to access the ADC08L060CIMTX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC08,
or try a keyword search, such as Analog to Digital Converters
