ADC1001CCJ - Texas Instruments

Description: 10 Bit Analog to Digital Converter 1 Input 1 SAR 20-CDIP

Download ADC1001CCJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

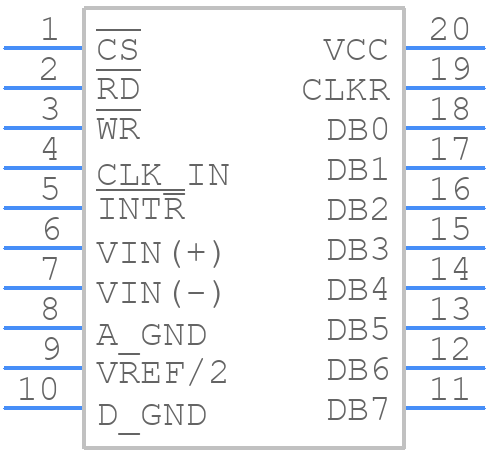

ADC1001CCJ - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

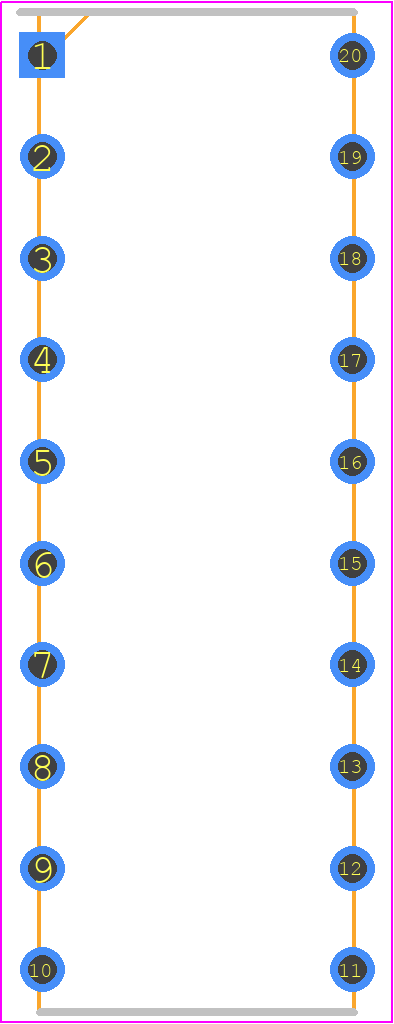

ADC1001CCJ - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 20-PIN DIP
click to zoom
3D Models
ADC1001CCJ - Texas Instruments - 3D model - Dual-In-Line Packages - 20-PIN DIP
click to zoom

ADC1001CCJ Details

  • Manufacturer Part Number:

    ADC1001CCJ

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-20

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    5.05 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Conversion Time-Max:

    220 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T20

  • Length:

    25.019 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ADC1001CCJ Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the ADC1001CCJ application note (SLAA332) that recommends a star-ground configuration, separate analog and digital grounds, and careful routing of sensitive analog signals to minimize noise and interference.
  • The ADC1001CCJ's clock input requires a high-speed, low-jitter clock source. Engineers should use a clock source with a frequency tolerance of ±100 ppm and a jitter of less than 100 ps. Additionally, the clock signal should be routed as a differential pair to minimize noise and interference.
  • A low-pass filter with a cutoff frequency below the Nyquist frequency (half the sampling frequency) is recommended to remove high-frequency noise and aliasing. A simple RC filter or a more complex active filter can be used, depending on the specific application requirements.
  • The ADC1001CCJ's analog input should be biased to the desired common-mode voltage (typically VCC/2) using a voltage divider or a dedicated bias circuit. The input should also be terminated with a resistor to match the impedance of the signal source and prevent reflections.
  • A decoupling scheme with multiple capacitors of different values (e.g., 10 uF, 100 nF, and 10 nF) should be used to filter out noise and ripple on the power supply lines. The capacitors should be placed as close as possible to the ADC1001CCJ's power pins.
