ADC10154CIWM - Texas Instruments

Description: A/D converters

Download ADC10154CIWM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

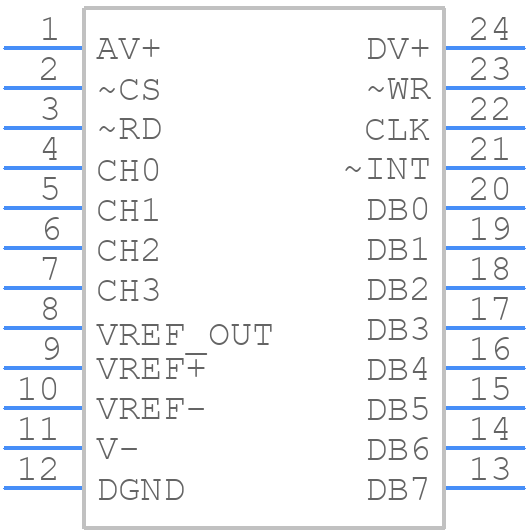

ADC10154CIWM - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC10154CIWM - Texas Instruments PCB footprint - Other - Other - SOIC127P1032X265-24N
click to zoom

ADC10154CIWM Details

  • Manufacturer Part Number:

    ADC10154CIWM

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-24

  • Pin Count:

    24

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    5.05 V

  • Analog Input Voltage-Min:

    -5.05 V

  • Conversion Time-Max:

    4.4 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e0

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    4

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.166 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ADC10154CIWM Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the ADC10154CIWM evaluation module user's guide, which includes recommendations for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
  • The ADC10154CIWM has an internal calibration feature that can be enabled through the CAL pin. Additionally, external calibration can be performed using an external voltage reference and adjusting the offset and gain registers. Refer to the datasheet and application notes for detailed calibration procedures.
  • The ADC10154CIWM can achieve a maximum sampling rate of 1 MSPS (million samples per second) in continuous conversion mode. However, the actual sampling rate may be limited by the system's clock frequency, analog input bandwidth, and digital interface throughput.
  • The ADC10154CIWM has internal overvoltage protection (OVP) and undervoltage protection (UVP) circuits that can detect and respond to out-of-range input voltages. Additionally, external protection circuits such as voltage dividers, clamping diodes, or voltage limiters can be used to prevent damage to the ADC.
  • The ADC10154CIWM has a typical power consumption of 1.5 mA at 1 MSPS. Power consumption can be minimized by reducing the sampling rate, using the power-down mode, and optimizing the system's clock frequency and digital interface.
