ADC10464CIWMX/NOPB - Texas Instruments

Description: Analog to Digital Converters - ADC R 926-A104S101CIMMXNPB

Download ADC10464CIWMX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

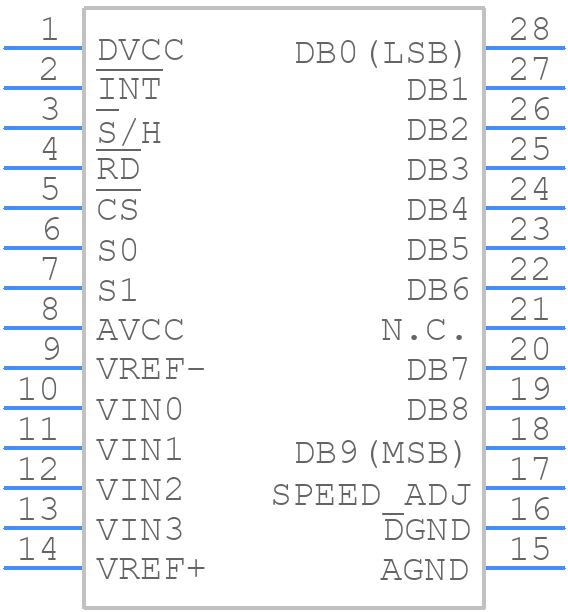

ADC10464CIWMX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC10464CIWMX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G28)
click to zoom
3D Models
ADC10464CIWMX/NOPB - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G28)
click to zoom

ADC10464CIWMX/NOPB Details

  • Manufacturer Part Number:

    ADC10464CIWMX/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOIC-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    5.55 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Conversion Time-Max:

    0.9 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Linearity Error-Max (EL):

    0.04882813%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.8 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADC10464CIWMX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the application note 'AN-1299: PCB Layout and Routing Guidelines for ADC10464' which provides detailed recommendations for optimal performance.
  • The ADC10464CIWMX/NOPB has a built-in calibration feature that can be used to improve accuracy. The calibration process involves writing specific values to the device's registers, as described in the datasheet. Additionally, Texas Instruments provides a calibration guide in the application note 'AN-1300: Calibration and Verification of ADC10464'.
  • The maximum sampling rate of the ADC10464CIWMX/NOPB is 65 MSPS, but this can be limited by the clock frequency, analog input bandwidth, and other system-level factors. The datasheet provides more information on the sampling rate limitations.
  • The ADC10464CIWMX/NOPB has a parallel output interface that can be connected to a microcontroller or FPGA. Texas Instruments provides example code and interface guidelines in the application note 'AN-1301: Interfacing the ADC10464 with a Microcontroller or FPGA'.
  • The power consumption of the ADC10464CIWMX/NOPB depends on the operating mode, clock frequency, and other factors. The datasheet provides power consumption specifications. To reduce power consumption, consider using the device's power-down modes, reducing the clock frequency, and optimizing the analog input signal.
