Texas Instruments provides a layout and routing guide in the application note SLAA523, which includes recommendations for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
The ADC104S021QIMM/NOPB has an internal calibration feature that can be used to calibrate the device. Additionally, Texas Instruments provides a calibration procedure in the application note SLAA524, which includes steps for calibrating the ADC using an external reference voltage.
The maximum sampling rate of the ADC104S021QIMM/NOPB is 200 kSPS, but this can be limited by the clock frequency, input signal bandwidth, and other system-level factors. It's recommended to consult the datasheet and application notes for more information on achieving the highest possible sampling rate.
The ADC104S021QIMM/NOPB has a SPI-compatible interface that can be easily interfaced with most microcontrollers or FPGAs. Texas Instruments provides example code and interface diagrams in the datasheet and application notes to help with the interface design.
The power consumption of the ADC104S021QIMM/NOPB is typically around 15 mW at 200 kSPS, but this can vary depending on the clock frequency, input signal, and other factors. To minimize power consumption, it's recommended to use the lowest possible clock frequency, reduce the input signal bandwidth, and use the power-down mode when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC104S021QIMM/NOPB Overview

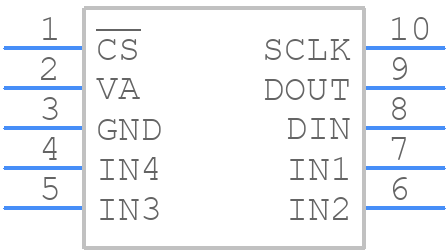

Use the download button to access the ADC104S021QIMM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC10,
or try a keyword search, such as Analog to Digital Converters
