ADC1061CIWM - Texas Instruments

Description: Analog to Digital Converters - ADC

Download ADC1061CIWM Model

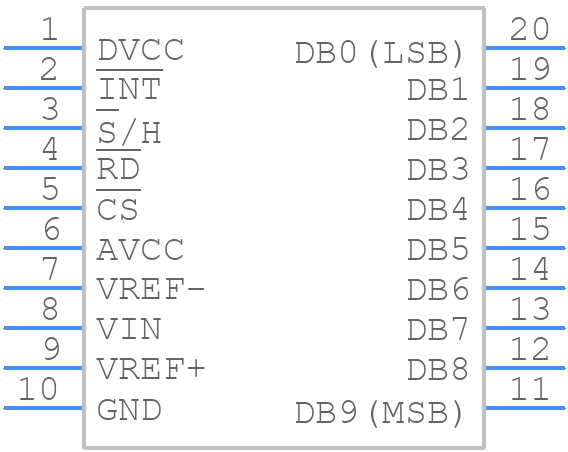

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADC1061CIWM - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - NS Package Number M20B
click to zoom
3D Models
ADC1061CIWM - Texas Instruments  - 3D model - Small Outline Packages - NS Package Number M20B
click to zoom

ADC1061CIWM Details

  • Manufacturer Part Number:

    ADC1061CIWM

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-20

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    5.5 V

  • Analog Input Voltage-Min:

    4.5 V

  • Conversion Time-Max:

    1.8 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.6 mm

  • Linearity Error-Max (EL):

    0.146484%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Sample and Hold / Track and Hold:

    TRACK

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    45 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

ADC1061CIWM Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the ADC1061CIWM datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using differential pairs for clock and data signals.
  • The ADC1061CIWM requires a high-speed clock input, typically in the range of 10-50 MHz. To handle this, use a clock buffer or a dedicated clock generator, and ensure the clock signal is clean and has minimal jitter. Also, use a series termination resistor to match the clock signal impedance to the PCB trace impedance.
  • The ADC1061CIWM has a built-in analog filter, but it's recommended to use an external anti-aliasing filter to remove high-frequency noise and ensure the input signal is band-limited. A 2nd or 3rd order Butterworth filter with a cutoff frequency slightly below the Nyquist frequency is a good starting point.
  • The ADC1061CIWM has an internal calibration mechanism, but it's recommended to perform an external calibration using a known reference voltage source. This can be done by applying a known voltage to the input pins and reading the corresponding digital output code. The calibration process should be repeated at different temperatures and supply voltages to ensure accuracy across the operating range.
  • Use a combination of ceramic and electrolytic capacitors to decouple the power supply pins. A 0.1uF ceramic capacitor should be placed close to the power pin, and a 10uF electrolytic capacitor should be placed further away. This will help to filter out high-frequency noise and ensure a stable power supply.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADC1061CIWM Overview

Use the download button to access the ADC1061CIWM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC10, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
