ADC1061CMJ - Texas Instruments

ADC1061CMJ Details

• Manufacturer Part Number:

  ADC1061CMJ

• Rohs Code:

  No

• Part Life Cycle Code:

  Obsolete

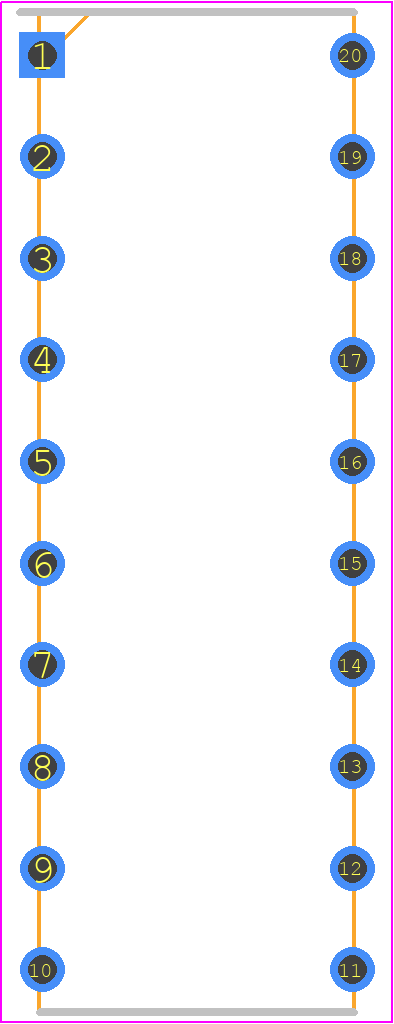

• Package Description:

  DIP, DIP20,.3

• Reach Compliance Code:

  Unknown

• ECCN Code:

  3A001.a.2.c

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog Input Voltage-Max:

  6.3 V

• Analog Input Voltage-Min:

  -0.3 V

• Conversion Time-Max:

  1.8 µs

• Converter Type:

  ADC, FLASH METHOD

• JESD-30 Code:

  R-GDIP-T20

• JESD-609 Code:

  e0

• Length:

  24.51 mm

• Linearity Error-Max (EL):

  0.15%

• Number of Analog In Channels:

  1

• Number of Bits:

  10

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Bit Code:

  OFFSET BINARY

• Output Format:

  PARALLEL, WORD

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Sample and Hold / Track and Hold:

  TRACK

• Seated Height-Max:

  5.08 mm

• Supply Current-Max:

  30 mA

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
