ADC10738CIWM/NOPB - Texas Instruments

Description: 10-Bit Plus Sign Serial I/O A/D Converters with Mux, Sample/Hold and Reference

Download ADC10738CIWM/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

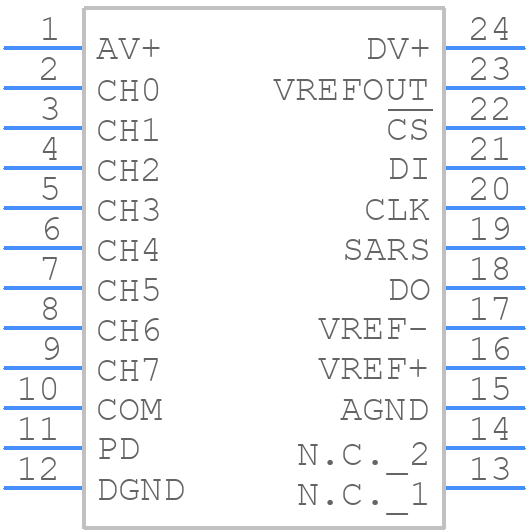

ADC10738CIWM/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC10738CIWM/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G24)
click to zoom
3D Models
ADC10738CIWM/NOPB - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G24)
click to zoom

ADC10738CIWM/NOPB Details

  • Manufacturer Part Number:

    ADC10738CIWM/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    5 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.1221%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    8

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.074 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADC10738CIWM/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals and avoid crossing digital signals over analog signals. Also, use a common mode filter capacitor between the analog input and the analog ground.
  • To optimize the ADC10738CIWM/NOPB for low-power applications, use the lowest possible clock frequency, disable the internal reference voltage, and use the power-down mode when not converting. Additionally, consider using a lower supply voltage and reducing the input bandwidth.
  • Use external voltage limiting resistors and diodes to clamp the input voltage to within the ADC's absolute maximum ratings. Also, consider using a voltage limiter IC or a transient voltage suppressor to protect the ADC from overvoltage conditions.
  • Calibrate the internal temperature sensor by measuring the temperature using an external thermometer and adjusting the offset and gain registers accordingly. Also, ensure good thermal coupling between the ADC and the surrounding environment.
  • Use a common clock source and synchronize the conversion starts of each ADC using the SYNC pin. Ensure that the clock signals are properly buffered and routed to minimize skew and jitter.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADC10738CIWM/NOPB Overview

Use the download button to access the ADC10738CIWM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC10, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
