ADC108S022CIMT - Texas Instruments

Description: 10BIT 8CH 50-200KSPS ADC, ADC108S022

Download ADC108S022CIMT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

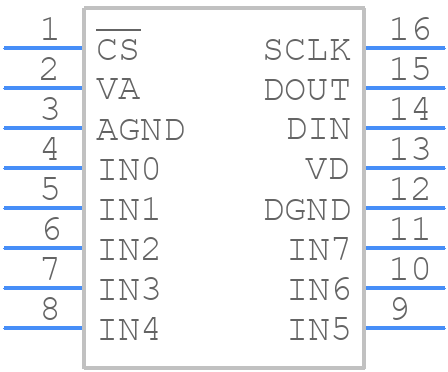

ADC108S022CIMT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC108S022CIMT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G16)
click to zoom
3D Models
ADC108S022CIMT - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G16)
click to zoom

ADC108S022CIMT Details

  • Manufacturer Part Number:

    ADC108S022CIMT

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    4.0625 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e0

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0293%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.2 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADC108S022CIMT Frequently Asked Questions (FAQs)

  • The recommended input impedance for the ADC108S022CIMT is 1 kΩ to 10 kΩ. This ensures proper signal attenuation and prevents signal reflections.
  • The ADC108S022CIMT requires a clock signal with a frequency range of 1 MHz to 50 MHz. The clock signal should be a clean, low-jitter signal with a duty cycle of 40% to 60%. It's recommended to use a clock source with a low jitter and a high signal-to-noise ratio.
  • The ADC108S022CIMT's performance is affected by temperature. The device's offset error, gain error, and linearity error increase with temperature. It's recommended to operate the device within the specified temperature range of -40°C to 125°C and to consider temperature calibration for high-accuracy applications.
  • To minimize noise and interference, it's recommended to follow good PCB layout practices, such as separating analog and digital signals, using ground planes, and minimizing signal trace lengths. Additionally, it's recommended to place the ADC108S022CIMT close to the analog signal source and to use shielding or guard rings to reduce electromagnetic interference.
  • The recommended power supply decoupling for the ADC108S022CIMT is to use a 10 μF ceramic capacitor in parallel with a 1 μF ceramic capacitor, both connected between the power supply pins and ground. This helps to filter out noise and ripple on the power supply lines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADC108S022CIMT Overview

Use the download button to access the ADC108S022CIMT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC10, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
