ADC10D1500CIUT - Texas Instruments

ADC10D1500CIUT Details

• Manufacturer Part Number:

  ADC10D1500CIUT

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Active

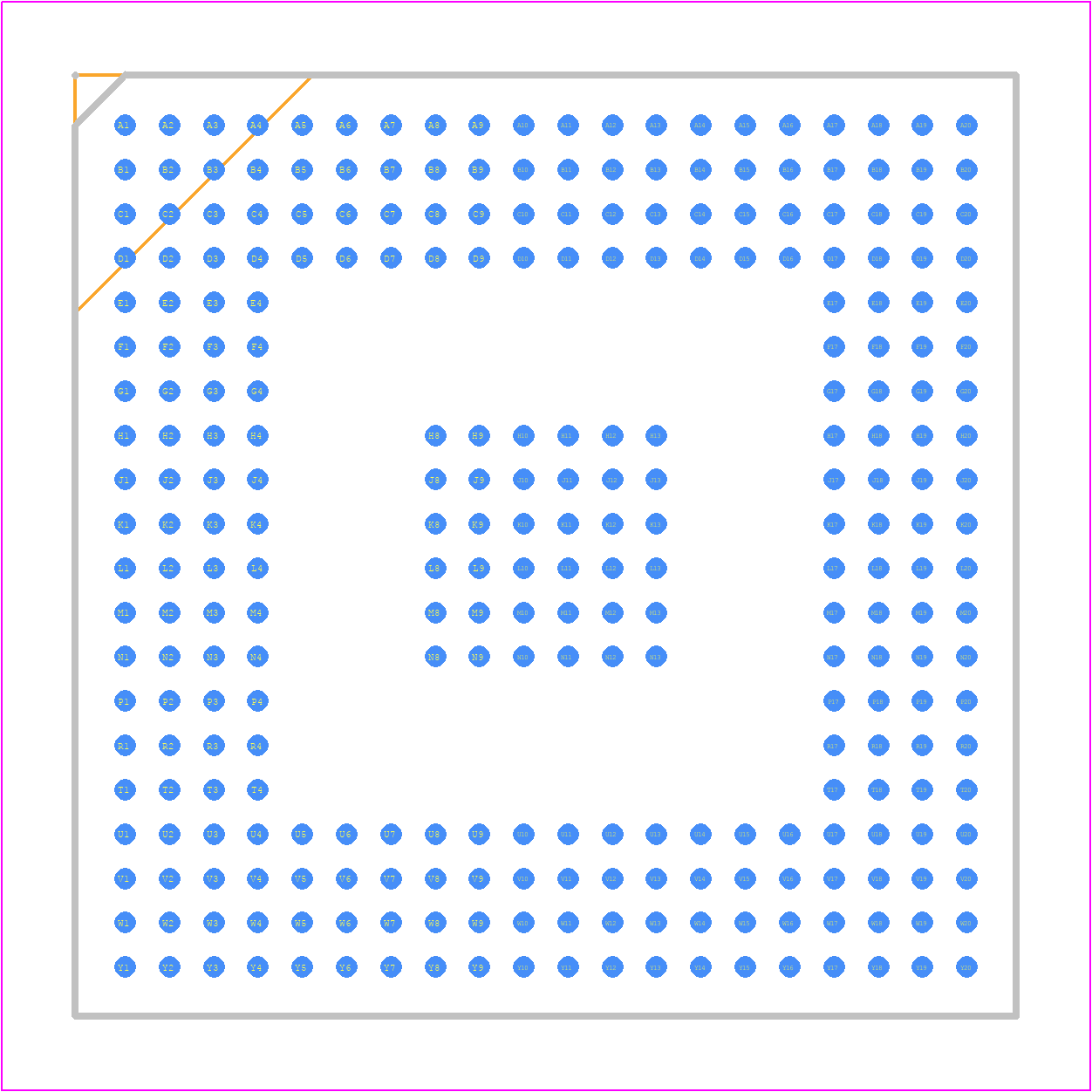

• Part Package Code:

  BGA

• Pin Count:

  292

• ECCN Code:

  3A001.A.5.A.2

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  Peak-to-peak input voltage range(V) : 0.8

• Analog Input Voltage-Max:

  0.8 V

• Analog Input Voltage-Min:

  -0.8 V

• Converter Type:

  ADC, DELTA-SIGMA

• JESD-30 Code:

  S-PBGA-B292

• JESD-609 Code:

  e0

• Length:

  27 mm

• Linearity Error-Max (EL):

  0.1367%

• Moisture Sensitivity Level:

  3

• Number of Analog In Channels:

  1

• Number of Bits:

  10

• Number of Functions:

  1

• Number of Terminals:

  292

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  OFFSET BINARY, 2S COMPLEMENT BINARY

• Output Format:

  PARALLEL, WORD

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA292,20X20,50

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  220

• Sample Rate:

  3000 MHz

• Sample and Hold / Track and Hold:

  TRACK

• Seated Height-Max:

  2.58 mm

• Supply Current-Max:

  985 mA

• Supply Voltage-Nom:

  1.9 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  BALL

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  27 mm
