ADC12010CIVYX/NOPB - Texas Instruments

Description: Analog to Digital Converters - ADC 12-Bit 10MSPS Analog-to-Digital Converter (ADC) 32-LQFP -40 to 85

Download ADC12010CIVYX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

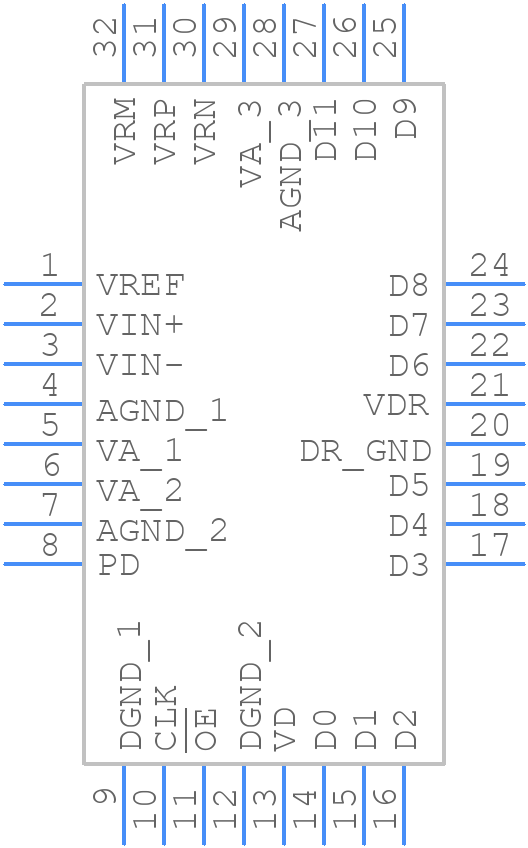

ADC12010CIVYX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC12010CIVYX/NOPB - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - NEY0032A
click to zoom
3D Models
ADC12010CIVYX/NOPB - Texas Instruments - 3D model - Quad Flat Packages - NEY0032A
click to zoom

ADC12010CIVYX/NOPB Details

  • Manufacturer Part Number:

    ADC12010CIVYX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2017-09-30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 4

  • Analog Input Voltage-Max:

    4.75 V

  • Conversion Time-Max:

    60 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0366%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    10 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    39 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADC12010CIVYX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the application note SLAA523, which recommends a symmetrical layout, minimal trace length, and proper decoupling to reduce noise and ensure accurate conversions.
  • The ADC12010CIVYX/NOPB has a built-in calibration feature that can be accessed through the CAL pin. A calibration sequence can be initiated by toggling the CAL pin, and the device will adjust its internal offset and gain to achieve optimal accuracy.
  • The ADC12010CIVYX/NOPB can achieve a maximum sampling rate of 1.5 MSPS, but this may vary depending on the specific application and system design. It's recommended to consult the datasheet and application notes for more information on achieving high-speed conversions.
  • The ADC12010CIVYX/NOPB has internal overvoltage protection on the analog input pins, but it's still recommended to add external protection circuitry, such as voltage-limiting resistors or clamping diodes, to prevent damage from excessive voltage levels.
  • Yes, the ADC12010CIVYX/NOPB can be used in a multi-channel application by using the device's built-in multiplexer. The multiplexer can be configured through the control pins to select one of the four analog input channels for conversion.
