ADC12020CIVY - Texas Instruments

Description: 12Bit 20MSPS ADC with S&H,ADC12020CIVY

Download ADC12020CIVY Model

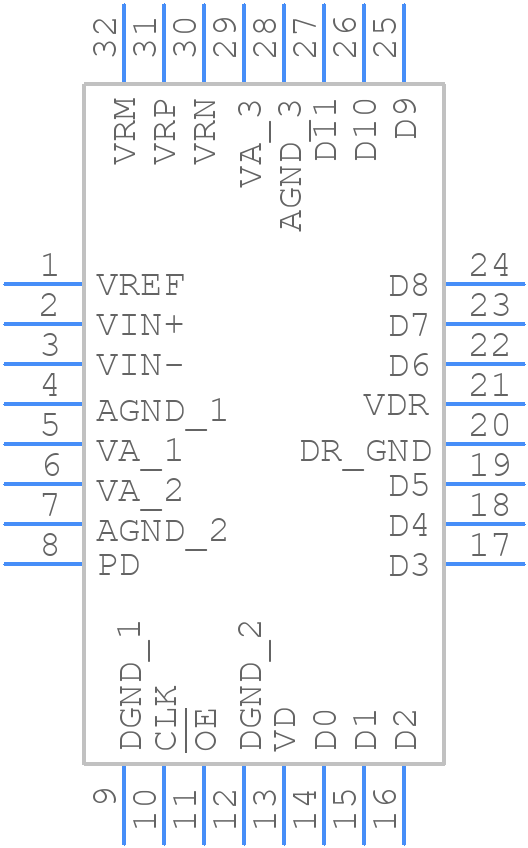

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADC12020CIVY - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - NEY0032A
click to zoom
3D Models
ADC12020CIVY - Texas Instruments  - 3D model - Quad Flat Packages - NEY0032A
click to zoom

ADC12020CIVY Details

  • Manufacturer Part Number:

    ADC12020CIVY

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Pin Count:

    32

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-609 Code:

    e0

  • Moisture Sensitivity Level:

    3

  • Output Bit Code:

    OFFSET BINARY

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    TIN LEAD

  • Time@Peak Reflow Temperature-Max (s):

    40

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADC12020CIVY Overview

Use the download button to access the ADC12020CIVY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC12, or try a keyword search, such as Analog to Digital Converters
