Texas Instruments provides a layout and routing guide in the ADC12130 datasheet, which recommends keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
The ADC12130CIWMX/NOPB has a built-in calibration feature that can be used to improve accuracy. The calibration process involves writing a specific code to the device's calibration register, which adjusts the internal offset and gain to compensate for any errors. Texas Instruments provides a calibration procedure in the datasheet, which involves measuring the device's output voltage and adjusting the calibration register accordingly.
The ADC12130CIWMX/NOPB has a maximum sampling rate of 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the analog input signal. It's recommended to consult the datasheet and the device's timing diagrams to determine the maximum achievable sampling rate for a specific application.
The ADC12130CIWMX/NOPB has a power-on reset (POR) feature that resets the device when the power supply voltage falls below a certain threshold. The device also has a brown-out reset (BOR) feature that resets the device when the power supply voltage falls below a certain threshold for a certain period of time. To handle these features, it's recommended to use an external power-on reset circuit that can detect the power supply voltage and hold the device in reset until the voltage is stable. Additionally, the device's POR and BOR features can be disabled by writing to the device's configuration register.
The ADC12130CIWMX/NOPB requires a stable power supply voltage to operate accurately. It's recommended to use a decoupling capacitor with a value of at least 10 uF and a low equivalent series resistance (ESR) to filter out noise and ripple on the power supply lines. Additionally, it's recommended to use a separate power supply plane for the analog and digital sections of the device to minimize noise coupling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC12130CIWMX/NOPB Overview

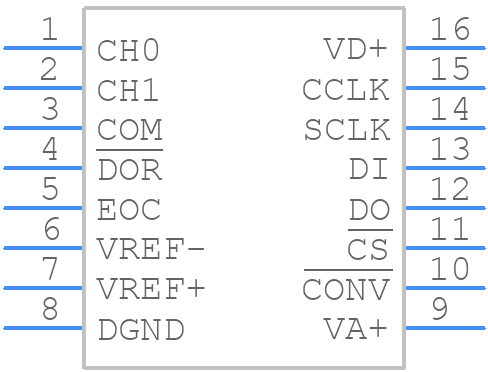

Use the download button to access the ADC12130CIWMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC12,
or try a keyword search, such as Analog to Digital Converters
