ADC12138CIMSAX - Texas Instruments

Description: Analog to Digital Converters - ADC Self-Calibrating 12-Bit Plus Sign Serial I/O A/D Converter with MUX and Sample/Hold 28-SSOP -40 to 85

Download ADC12138CIMSAX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

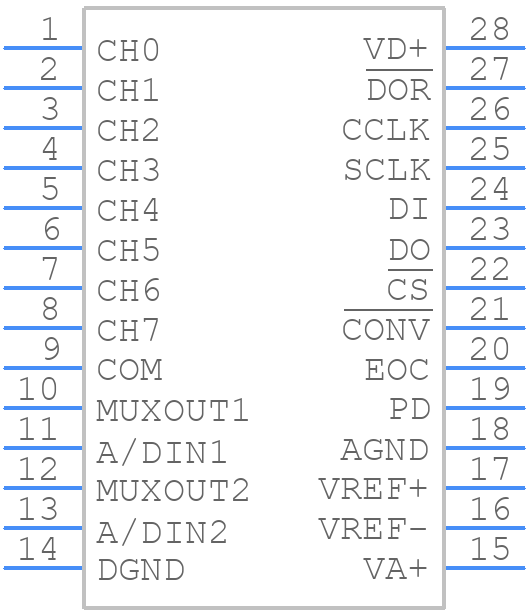

Symbol
ADC12138CIMSAX - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC12138CIMSAX - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G28)
click to zoom
3D Models
ADC12138CIMSAX - Texas Instruments - 3D model - Small Outline Packages - DB (R-PDSO-G28)
click to zoom

ADC12138CIMSAX Details

  • Manufacturer Part Number:

    ADC12138CIMSAX

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    PLASTIC, SSOP-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    8.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e0

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    4

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    235

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    5.3 mm

ADC12138CIMSAX Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the ADC12138CIMSAX Evaluation Module User's Guide (SLAU445). It recommends a symmetrical layout, minimizing trace lengths, and using a solid ground plane to reduce noise and improve performance.
  • The ADC12138CIMSAX has a built-in calibration feature. The device can be calibrated using the CAL pin. The calibration process involves shorting the CAL pin to the AGND pin, and then releasing it. This process can be done at power-up or during device operation. Refer to the datasheet for more details.
  • The maximum sampling rate of the ADC12138CIMSAX is 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the system clock frequency, the conversion mode, and the interface mode.
  • Yes, the ADC12138CIMSAX can be used in a multi-channel application. The device has a built-in sequencer that allows it to convert multiple channels in a sequence. The sequencer can be programmed to convert up to 8 channels in a sequence.
  • The power consumption of the ADC12138CIMSAX depends on the operating mode, sampling rate, and interface mode. The typical power consumption is around 1.5 mW at 1 MSPS. Power consumption can be reduced by using the power-down mode, reducing the sampling rate, or using the low-power mode.
