ADC12138CIWM - Texas Instruments

Description: 12 bit A-D converter,ADC12138CIWM SOIC28

Download ADC12138CIWM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

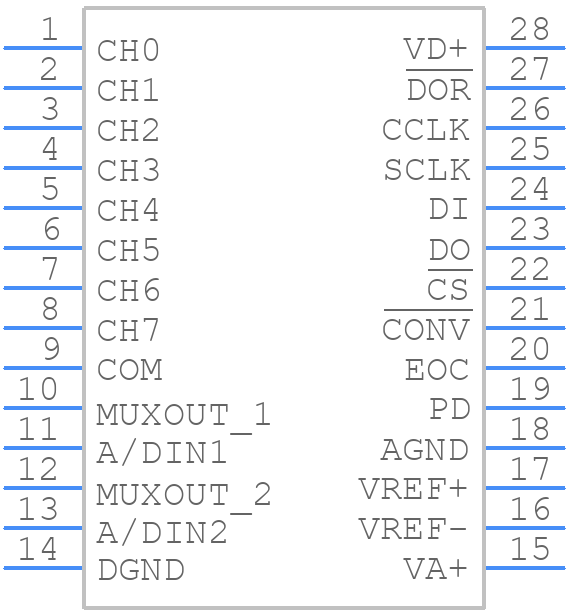

ADC12138CIWM - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC12138CIWM - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G28)
click to zoom
3D Models
ADC12138CIWM - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G28)
click to zoom

ADC12138CIWM Details

  • Manufacturer Part Number:

    ADC12138CIWM

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    5.55 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Conversion Time-Max:

    8.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e0

  • Length:

    17.9 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ADC12138CIWM Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog inputs and avoid crossing digital signals over analog signals.
  • To optimize for low power, use the ADC's built-in power-down mode, reduce the sampling rate, and use the internal reference voltage. Additionally, consider using a lower supply voltage and reducing the input impedance.
  • The recommended input impedance is 1 kΩ or less. Higher input impedance can lead to reduced accuracy and increased noise. Use a buffer amplifier or an impedance-matching network if necessary.
  • The ADC outputs 12-bit data in a 2's complement format. Use a microcontroller or FPGA to process the data, and consider using a digital filter to remove noise and improve accuracy.
  • The ADC12138CIWM is rated for operation from -40°C to 125°C. Temperature changes can affect the ADC's offset, gain, and linearity. Consider using thermal shielding, heat sinks, or temperature compensation techniques to minimize these effects.
