ADC1283IPT - STMicroelectronics

Description: 8 multiplexed channels, 50 ksps to 200 ksps, 12-bit SAR ADC

Download ADC1283IPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

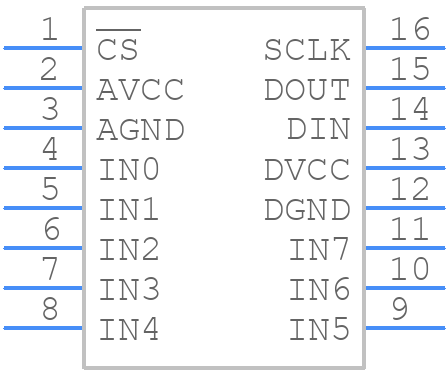

ADC1283IPT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ADC1283IPT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP16
click to zoom
3D Models
ADC1283IPT - STMicroelectronics - 3D model - Small Outline Packages - TSSOP16
click to zoom

ADC1283IPT Details

  • Manufacturer Part Number:

    ADC1283IPT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog Input Voltage-Max:

    5.5 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.029296875%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.2 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.8 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn) - immersion

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADC1283IPT Frequently Asked Questions (FAQs)

  • The recommended input impedance for the ADC1283IPT is between 1 kΩ and 10 kΩ to ensure proper signal integrity and minimize signal attenuation.
  • When using the ADC1283IPT in synchronous conversion mode, the clock signal should be connected to the CLKIN pin and should have a frequency between 1 MHz and 20 MHz. The clock signal should also have a duty cycle of 40% to 60% to ensure proper operation.
  • The VREF pin on the ADC1283IPT is used to set the reference voltage for the analog-to-digital conversion. The VREF pin should be connected to a stable voltage source between 1.2 V and 3.6 V to ensure accurate conversions.
  • To configure the ADC1283IPT for differential input mode, the IN+ and IN- pins should be connected to the differential input signal, and the AINCOM pin should be connected to a quiet analog ground. The ADC1283IPT should also be configured for differential mode through the control register.
  • The maximum sampling rate of the ADC1283IPT is 500 kSPS (kilo-samples per second) when using the internal clock, and up to 1 MSPS (mega-samples per second) when using an external clock.
