ADC128S102CIMTX - Texas Instruments

Description: ADC 12BIT 8CH 0.5-1MSPS 16-TSSOP

Download ADC128S102CIMTX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

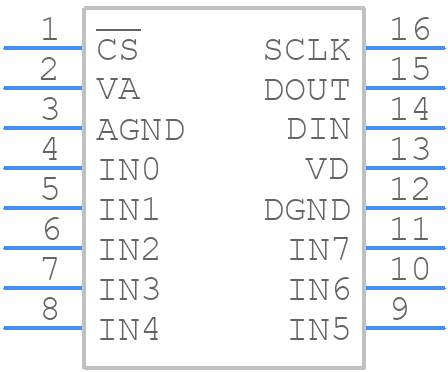

Symbol
ADC128S102CIMTX - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC128S102CIMTX - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
ADC128S102CIMTX - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

ADC128S102CIMTX Details

  • Manufacturer Part Number:

    ADC128S102CIMTX

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    0.8125 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e0

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    3.1 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADC128S102CIMTX Frequently Asked Questions (FAQs)

  • The recommended input impedance is 1 kΩ to 10 kΩ. This ensures that the input signal is not attenuated and the ADC can accurately sample the signal.
  • The ADC128S102CIMTX requires a clock signal with a frequency between 1 MHz and 50 MHz. The clock signal should be a clean, low-jitter signal, and it's recommended to use a dedicated clock source or a clock buffer to ensure signal integrity.
  • The ADC128S102CIMTX's performance is affected by temperature. The device's accuracy and linearity may degrade at high temperatures (above 85°C) or low temperatures (below -40°C). It's essential to consider temperature compensation or calibration to ensure accurate conversions.
  • The ADC128S102CIMTX has a built-in POR and BOR circuitry. During power-up, the device will reset and enter a low-power state. It's essential to ensure that the power supply is stable and within the recommended voltage range to prevent unwanted resets.
  • The ADC128S102CIMTX requires careful layout and routing to minimize noise and interference. It's recommended to keep the analog and digital signals separate, use a solid ground plane, and avoid running digital signals near the analog inputs.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADC128S102CIMTX Overview

Use the download button to access the ADC128S102CIMTX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC12, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
