A low-jitter, high-frequency clock source is recommended, such as a crystal oscillator or a high-quality clock generator. The clock source should be able to provide a stable clock signal with minimal phase noise and jitter.
To optimize the ADC's performance, consider factors such as input signal frequency, amplitude, and impedance, as well as the desired signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR). Adjust the ADC's settings, such as the sampling rate, gain, and filtering, to achieve the best possible performance for your specific application.
The ADC12D1600CIUT/NOPB can handle input voltages up to 2.5Vpp differential or 1.25Vpp single-ended. Exceeding this voltage may result in reduced accuracy, increased distortion, or even damage to the device.
To ensure proper synchronization, use a common clock source for both the ADC and the DSP/FPGA. Additionally, use a synchronization signal, such as a frame sync or a clock enable signal, to ensure that the ADC and DSP/FPGA are properly aligned.
To minimize noise and interference, keep analog and digital signals separate and use proper shielding and grounding techniques. Use a multi-layer printed circuit board (PCB) with a solid ground plane and separate analog and digital power supplies. Route analog signals away from digital signals and avoid crossing analog signals over digital signals.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC12D1600CIUT/NOPB Overview

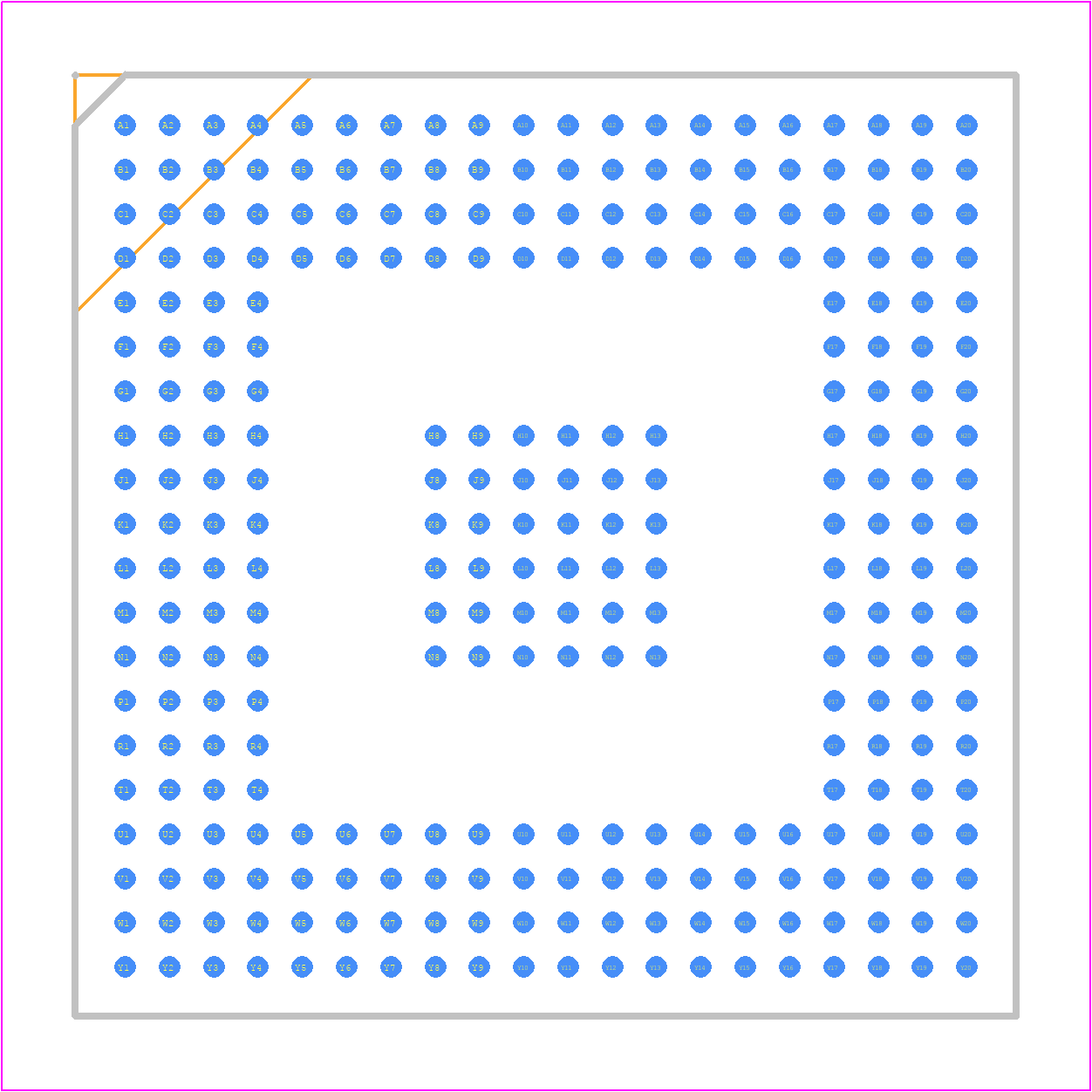

Use the download button to access the ADC12D1600CIUT/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC12,
or try a keyword search, such as Analog to Digital Converters
