The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures proper initialization of the ADC.
To optimize the ADC's performance, consider factors such as input signal frequency, amplitude, and impedance. Also, adjust the ADC's gain, offset, and clock frequency to match your application's requirements. Additionally, consider using the ADC's built-in calibration features to improve accuracy.
The ADC12D1800 can achieve a maximum sampling rate of 1800 MSPS (mega-samples per second) with a clock frequency of 1800 MHz. However, the actual sampling rate may be limited by the specific application, signal conditioning, and system design.
The ADC12D1800 outputs 12-bit parallel data. You can interface the ADC with a digital system, such as an FPGA or ASIC, using a parallel bus. Ensure proper synchronization and data alignment to avoid data corruption or loss.
The ADC12D1800 is sensitive to temperature changes, which can affect its performance and accuracy. Ensure proper thermal management by providing adequate heat sinking, airflow, and temperature control in your system design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC12D1800CIUT/NOPB Overview

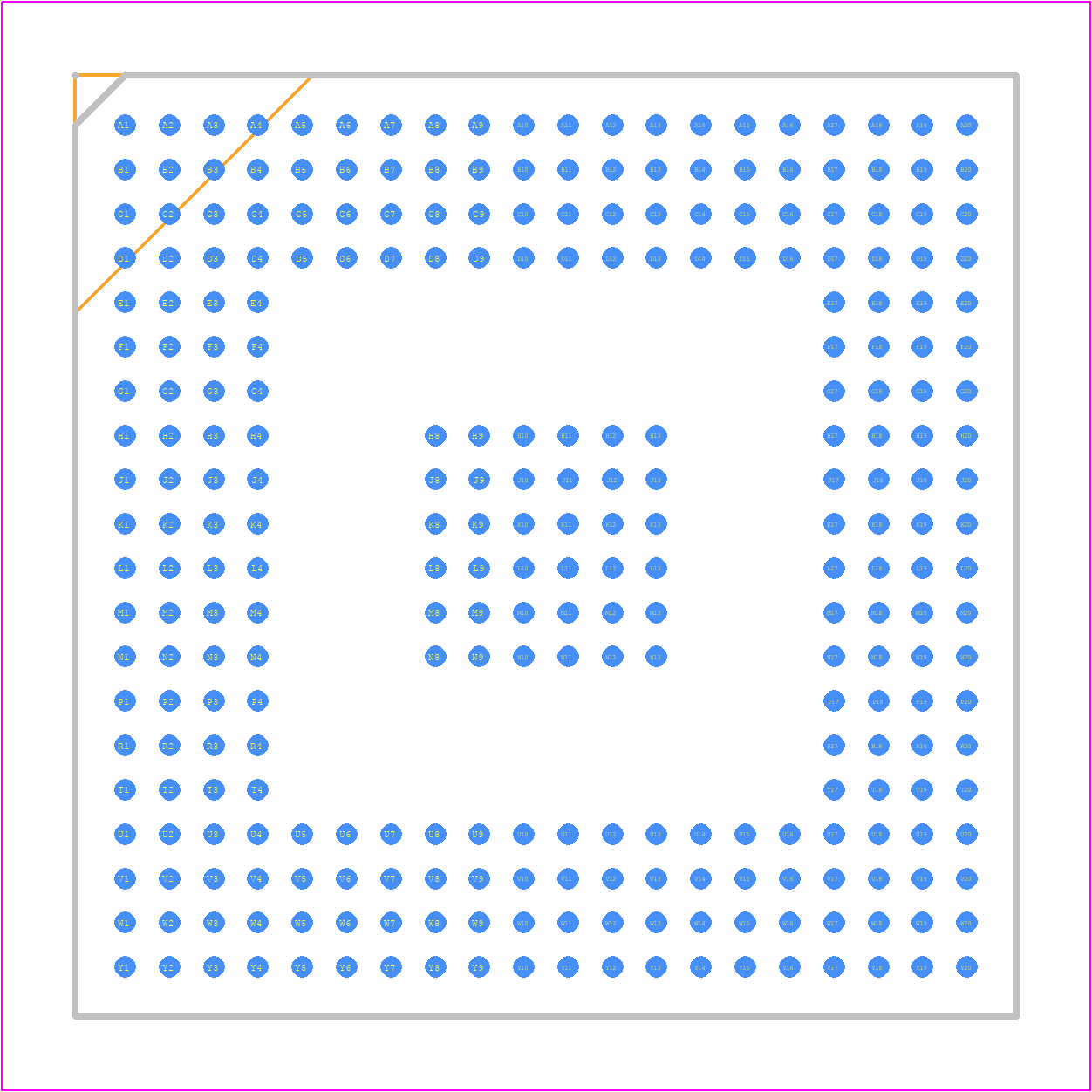

Use the download button to access the ADC12D1800CIUT/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
