ADC12DJ3200ZMX/EM - Texas Instruments

Description: Texas Instruments Space grade, 12-bit, dual 3.2-GSPS or single 6.4-GSPS, RF-sampling analog-to-digital converter (ADC) 196-CLGA 25 to 25

Download ADC12DJ3200ZMX/EM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADC12DJ3200ZMX/EM - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

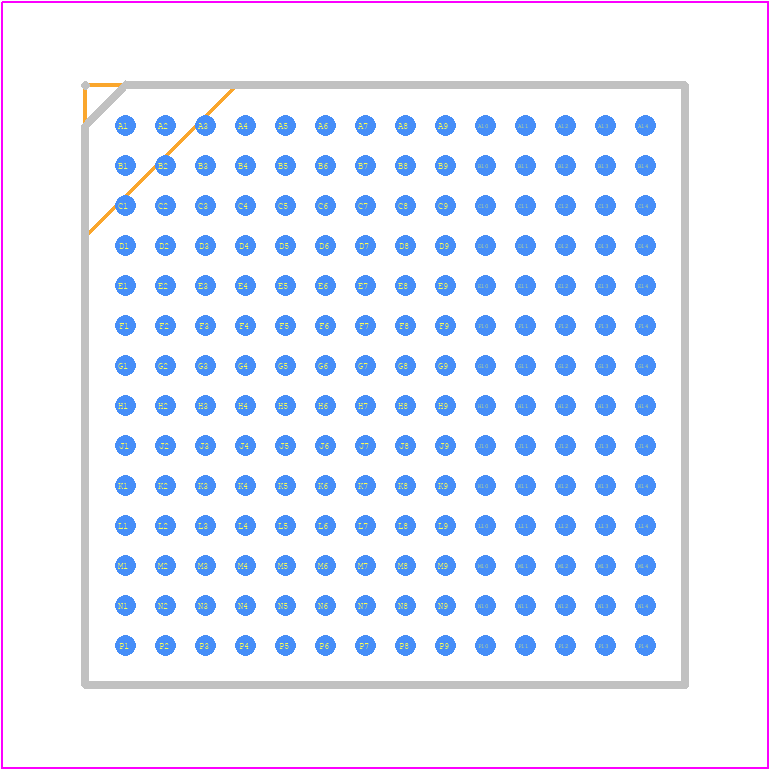

ADC12DJ3200ZMX/EM - Texas Instruments PCB footprint - BGA - BGA - ZMX0196A
click to zoom
3D Models
ADC12DJ3200ZMX/EM - Texas Instruments - 3D model - BGA - ZMX0196A
click to zoom

ADC12DJ3200ZMX/EM Details

  • Manufacturer Part Number:

    ADC12DJ3200ZMX/EM

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CGA-196

  • ECCN Code:

    3A001.A.5.A.3

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2018-11-10

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 0.8

  • Analog Input Voltage-Max:

    0.8 V

  • Analog Input Voltage-Min:

    -0.8 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-XLGA-X196

  • Length:

    15 mm

  • Linearity Error-Max (EL):

    0.07324%

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    196

  • Operating Temperature-Max:

    25 °C

  • Operating Temperature-Min:

    25 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    CGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Sample Rate:

    6400 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Supply Current-Max:

    1000 mA

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    LATERAL

  • Total Dose:

    300k Rad(Si) V

  • Width:

    15 mm

ADC12DJ3200ZMX/EM Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guide in the ADC12DJ3200EVM user's guide, which includes guidelines for signal routing, grounding, and decoupling to minimize noise and ensure optimal performance.
  • The ADC12DJ3200ZMX/EM has a flexible clocking scheme that can be optimized for specific applications. TI provides a clocking guide in the datasheet, and engineers can also use the ADC's built-in clock divider and multiplier to generate the desired clock frequency.
  • Metastability can occur in the ADC's output data due to the asynchronous nature of the conversion process. To handle metastability, engineers can use synchronization registers, such as the SYNC_IN and SYNC_OUT pins, to ensure that the output data is stable and accurate.
  • The ADC12DJ3200ZMX/EM has a built-in calibration feature that can be used to optimize its performance. Engineers can use the ADC's calibration registers to adjust the offset, gain, and linearity of the converter to achieve optimal performance.
  • The ADC12DJ3200ZMX/EM can handle input frequencies up to 6.4 GHz, making it suitable for high-speed applications such as radar, lidar, and software-defined radio.
