The optimal clock frequency for the ADC12DL1500ACF is between 100 MHz to 1.5 GHz, depending on the specific application and desired performance. However, it's recommended to use a clock frequency of 1.2 GHz or higher for optimal performance.
To optimize the ADC12DL1500ACF for low-power operation, use the lowest possible clock frequency, disable the internal voltage regulator, and use the power-down mode when not in use. Additionally, consider using the ADC's built-in low-power modes, such as the 'Nap' mode, which reduces power consumption to around 10 mW.
The recommended input signal amplitude for the ADC12DL1500ACF is between 0.5 Vpp to 1.5 Vpp, with an impedance of 50 ohms or less. It's also recommended to use a differential input signal to minimize noise and improve common-mode rejection.
The ADC12DL1500ACF outputs data in a 12-bit or 14-bit format, depending on the mode of operation. The output data is in a binary two's complement format, with the most significant bit (MSB) first. The word length can be adjusted using the ADC's configuration registers.
The ADC12DL1500ACF has a latency of around 10 clock cycles, and a throughput of up to 1.5 GSPS (gigasamples per second) in high-speed mode. In low-power mode, the throughput is reduced to around 500 MSPS (megasamples per second).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC12DL1500ACF Overview

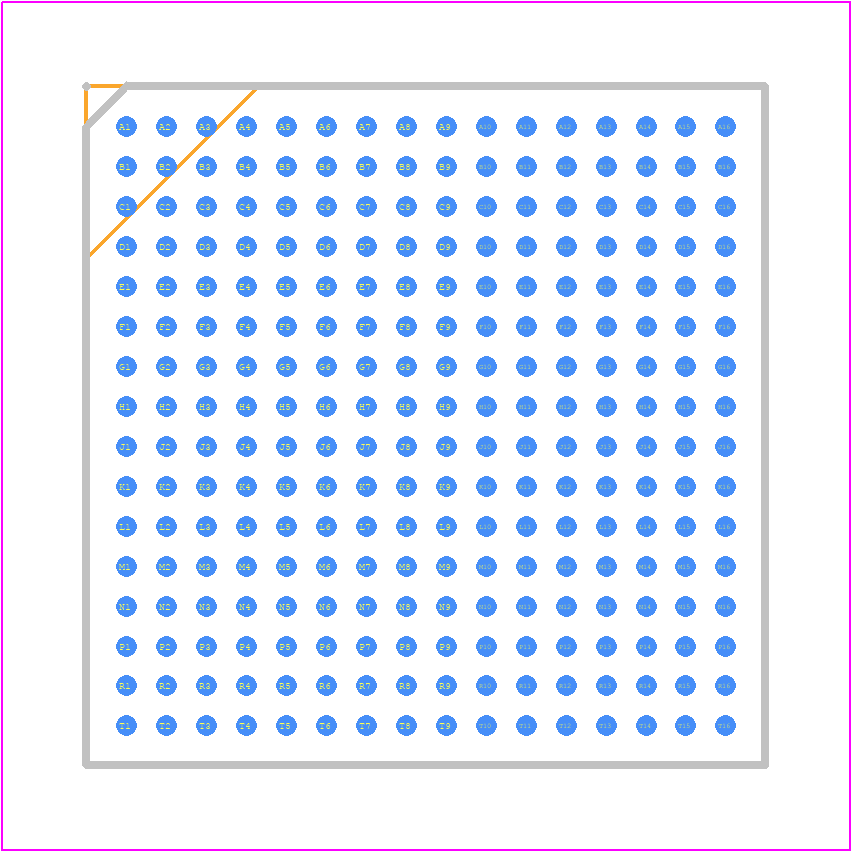

Use the download button to access the ADC12DL1500ACF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
