ADC12DL2500ACF - Texas Instruments

ADC12DL2500ACF Details

• Manufacturer Part Number:

  ADC12DL2500ACF

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

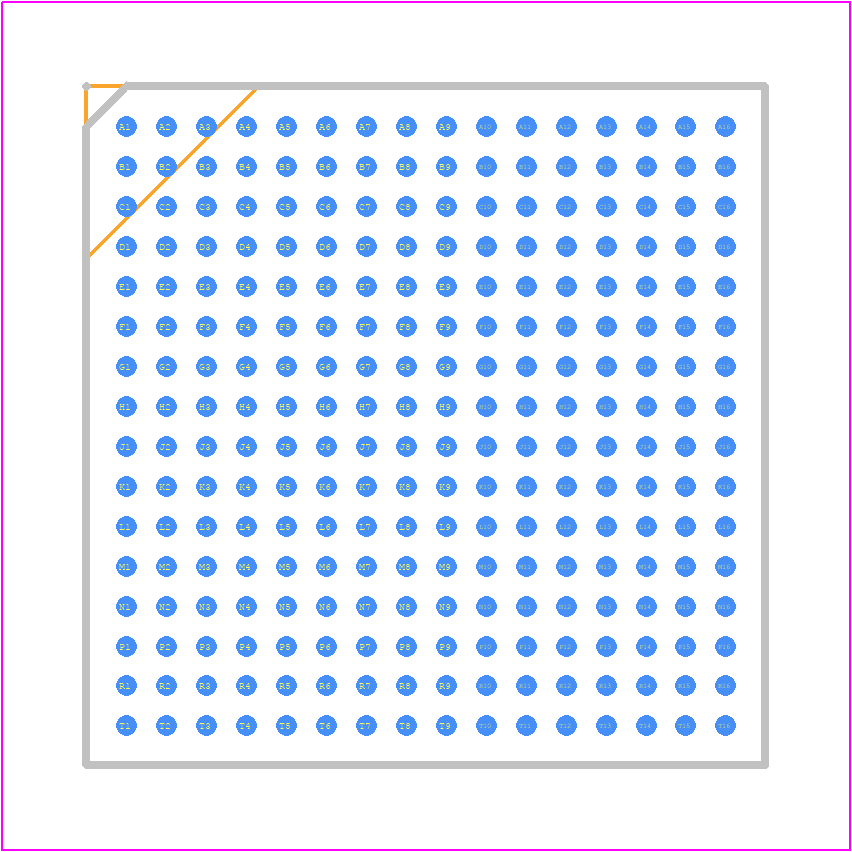

• Package Description:

  BGA-256

• ECCN Code:

  3A001.A.5.A.3

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  Peak-to-peak input voltage range(V) : 0.8

• Analog Input Voltage-Max:

  1.04 V

• Analog Input Voltage-Min:

  -1.04 V

• Converter Type:

  ADC, PROPRIETARY METHOD

• JESD-30 Code:

  S-XBGA-B256

• JESD-609 Code:

  e1

• Length:

  17 mm

• Linearity Error-Max (EL):

  0.056152%

• Moisture Sensitivity Level:

  3

• Number of Analog In Channels:

  1

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  256

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  OFFSET BINARY, 2S COMPLEMENT BINARY

• Output Format:

  SERIAL

• Package Body Material:

  UNSPECIFIED

• Package Code:

  BGA

• Package Equivalence Code:

  BGA256,16X16,50

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  260

• Sample Rate:

  5000 MHz

• Seated Height-Max:

  3.31 mm

• Supply Voltage-Nom:

  1.1 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Width:

  17 mm
