A low-jitter, high-frequency clock source is recommended, such as a crystal oscillator or a high-quality clock generator. The clock source should be able to provide a stable clock signal with minimal phase noise and jitter.
To optimize the ADC's performance, consider factors such as input signal frequency, amplitude, and impedance, as well as the desired signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR). Adjust the ADC's settings, such as the sampling rate, gain, and filtering, to achieve the best possible performance for your specific application.
The ADC12J4000NKE10 has a maximum input voltage of 1.75Vpp differential, which corresponds to 3.5Vpp single-ended. Exceeding this voltage may result in reduced accuracy, increased distortion, or even damage to the device.
To ensure proper synchronization, use a common clock source for both the ADC and the DSP/FPGA, and ensure that the clock signals are properly buffered and distributed. Additionally, consider using a synchronization signal, such as a frame sync or a clock enable signal, to ensure that the ADC and DSP/FPGA are properly aligned.
To minimize noise and ensure optimal performance, follow good layout and routing practices, such as separating analog and digital signals, using ground planes, and minimizing trace lengths and impedance mismatches. Consult the datasheet and application notes for specific guidance on layout and routing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC12J4000NKE10 Overview

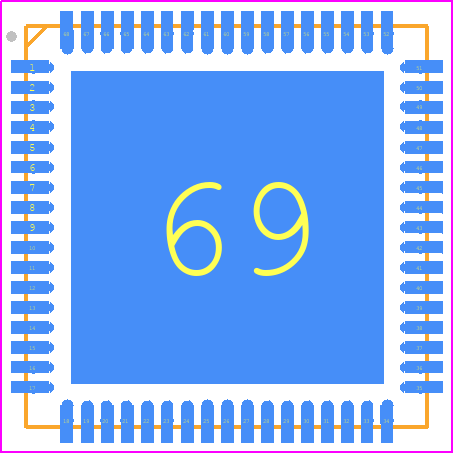

Use the download button to access the ADC12J4000NKE10 schematic symbol, PCB footprint, and 3D model.
