ADC141S628QIMM/NOPB - Texas Instruments

Description: Analog to Digital Converters - ADC A/D Cnvtr IC

Download ADC141S628QIMM/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

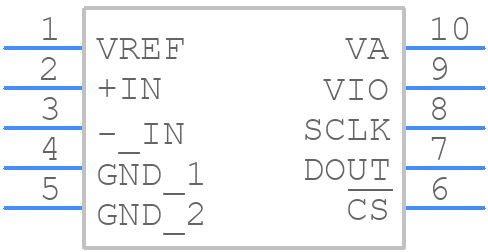

Symbol
ADC141S628QIMM/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC141S628QIMM/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
ADC141S628QIMM/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGS0010A
click to zoom

ADC141S628QIMM/NOPB Details

  • Manufacturer Part Number:

    ADC141S628QIMM/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-10

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2017-12-23

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Analog Input Voltage-Min:

    1 V

  • Conversion Time-Max:

    0.05 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.97 mA

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADC141S628QIMM/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the application note SLAA523, which includes recommendations for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
  • The ADC141S628QIMM/NOPB has an internal calibration feature that can be enabled through the CAL pin. Additionally, Texas Instruments provides a calibration procedure in the application note SLAA524, which includes steps for offset and gain calibration.
  • The maximum sampling rate of the ADC141S628QIMM/NOPB is 65 MSPS, but this can be limited by the clock frequency, analog input bandwidth, and digital output data rate. Refer to the datasheet and application notes for more information on achieving the maximum sampling rate.
  • The ADC141S628QIMM/NOPB has a parallel CMOS output interface that can be easily interfaced with a microcontroller or FPGA. Texas Instruments provides example code and interface diagrams in the application notes SLAA525 and SLAA526, respectively.
  • The power consumption of the ADC141S628QIMM/NOPB is typically around 350 mW at 65 MSPS. Power consumption can be reduced by lowering the clock frequency, using the power-down mode, and optimizing the analog input signal range. Refer to the datasheet and application notes for more information on power management.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADC141S628QIMM/NOPB Overview

Use the download button to access the ADC141S628QIMM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC14, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
