Texas Instruments provides a layout and routing guide in the application note 'AN-1299: PCB Layout and Routing Guidelines for ADC14X250' which includes recommendations for signal routing, grounding, and power supply decoupling to minimize noise and ensure optimal performance.
The ADC14X250RHBR has an internal calibration mechanism, but it can be further calibrated using an external calibration signal. Texas Instruments provides a calibration procedure in the application note 'AN-1298: Calibration and Verification of the ADC14X250' which includes steps for offset and gain calibration.
The ADC14X250RHBR can achieve a maximum sampling rate of 250 MSPS, but this is dependent on the clock frequency, input signal frequency, and the number of channels being used. The datasheet provides a detailed table of the maximum sampling rates for different clock frequencies and input signal frequencies.
The ADC14X250RHBR has a parallel CMOS output interface that can be interfaced with a FPGA or ASIC using a variety of digital interface protocols such as LVDS, LVPECL, or CMOS. Texas Instruments provides interface guidelines and example code in the application note 'AN-1300: Interfacing the ADC14X250 to FPGAs' which includes recommendations for clocking, data alignment, and synchronization.
The power consumption of the ADC14X250RHBR depends on the sampling rate, input frequency, and operating conditions. The datasheet provides a detailed table of power consumption vs. sampling rate. To optimize power consumption, Texas Instruments recommends using the lowest possible sampling rate, reducing the input frequency, and using the power-down mode when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC14X250RHBR Overview

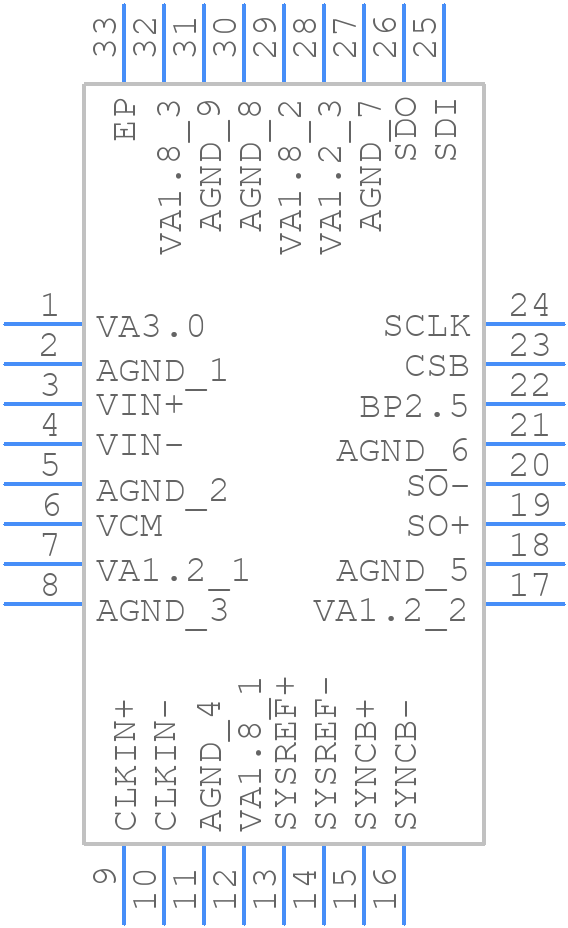

Use the download button to access the ADC14X250RHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC14,
or try a keyword search, such as Analog to Digital Converters
