Texas Instruments provides a layout and routing guide in the ADC3224IRGZR datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using differential pairs for clock and data signals.
The clock input should be driven by a low-jitter clock source, and it's recommended to use a clock buffer or a dedicated clock generator to ensure a clean and stable clock signal. Additionally, the clock signal should be routed close to the ADC and away from noisy signals.
A multi-point decoupling scheme is recommended, with a combination of ceramic and electrolytic capacitors placed close to the ADC power pins. A 10uF ceramic capacitor and a 1uF electrolytic capacitor in parallel are a good starting point, but the optimal decoupling scheme may vary depending on the specific application and PCB layout.
The ADC3224IRGZR has an internal calibration mechanism, but it's recommended to perform an external calibration using a known input signal to ensure optimal performance. The calibration process involves applying a known input signal and adjusting the ADC's offset and gain registers to achieve the desired accuracy.
The ADC3224IRGZR can handle input frequencies up to 1.5 GHz, but the maximum input frequency depends on the specific application and the desired signal-to-noise ratio (SNR). It's recommended to consult the datasheet and application notes for more information on input frequency limitations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC3224IRGZR Overview

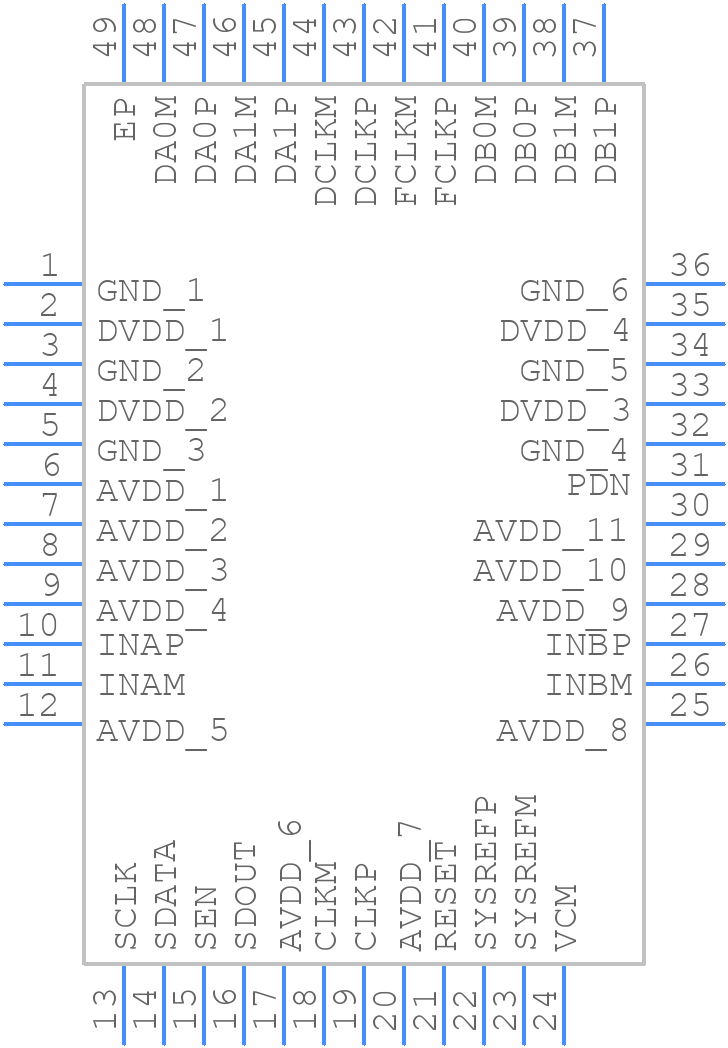

Use the download button to access the ADC3224IRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC32,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
