Texas Instruments provides a layout guide in the datasheet, but it's essential to follow additional best practices, such as keeping analog and digital traces separate, using a solid ground plane, and minimizing signal routing near the ADC inputs. A 4-layer PCB with a dedicated analog ground layer is recommended.
The internal reference voltage can be enabled by setting the REFSEL pin high. The buffer should be enabled by setting the REFBUF pin high. It's essential to follow the recommended capacitor values and layout guidelines for the reference voltage and buffer circuits to ensure stability and accuracy.
The maximum sampling rate of the ADC3244IRGZR is 65 MSPS. However, the power consumption increases with the sampling rate. At 65 MSPS, the power consumption is approximately 1.2W. To reduce power consumption, consider using a lower sampling rate or enabling the power-down mode between conversions.
The ADC3244IRGZR outputs 14-bit data in a parallel format. The recommended interface protocol is the DDR (Double Data Rate) LVDS interface, which provides high-speed data transfer while minimizing power consumption. Ensure proper synchronization and data capture by using a suitable FPGA or ASIC with a DDR LVDS receiver.
The ADC3244IRGZR has a maximum junction temperature of 150°C. To prevent overheating, ensure good thermal conductivity by using a heat sink or thermal pad, and provide adequate airflow around the device. Follow the recommended thermal design guidelines in the datasheet, and consider using a thermal interface material to improve heat transfer.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC3244IRGZR Overview

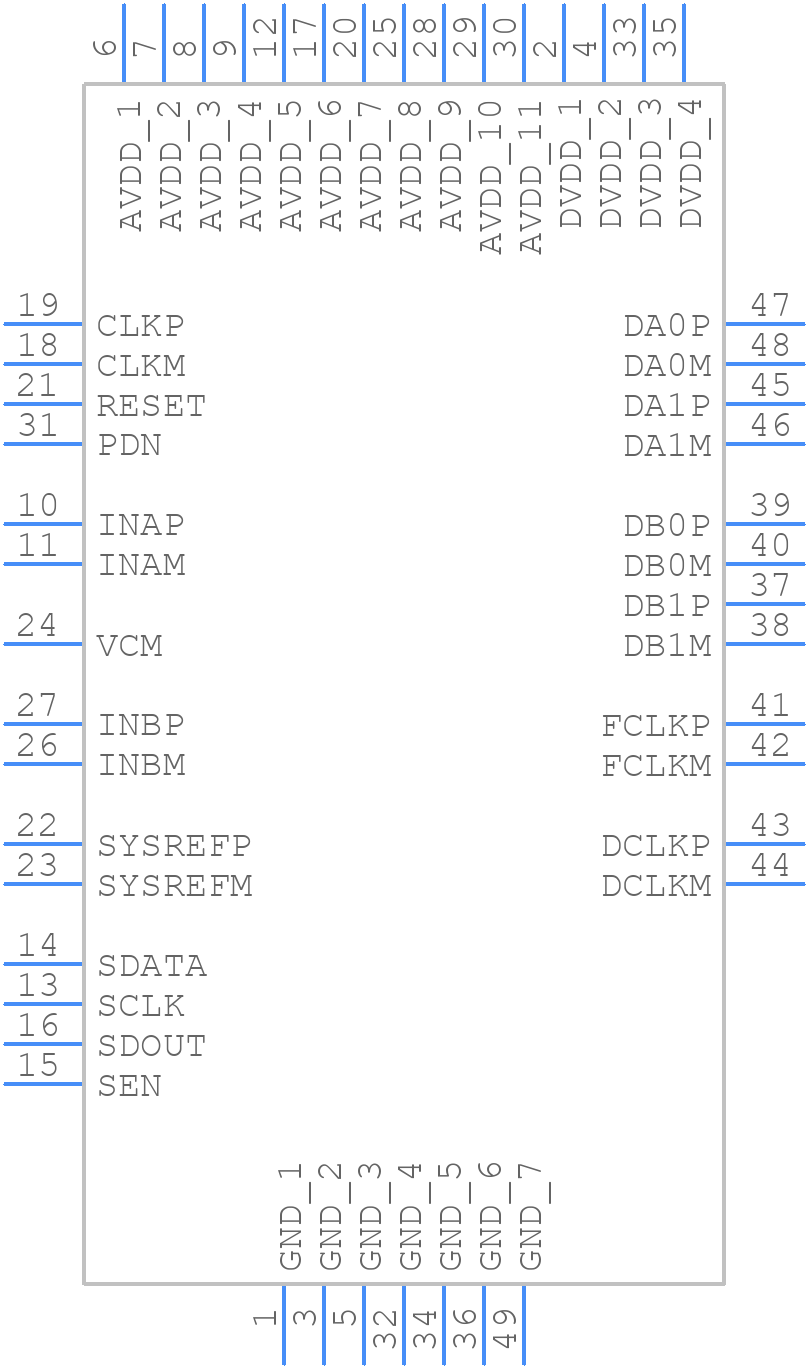

Use the download button to access the ADC3244IRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC32,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
