Texas Instruments provides a layout and routing guide in the ADC32J45IRGZT Evaluation Module User's Guide (SLAU445). It recommends a symmetrical layout, minimizing trace lengths, and using a solid ground plane to reduce noise and improve performance.
The ADC32J45IRGZT requires a high-speed clock input, typically in the range of 100-400 MHz. To handle this, use a clock source with low jitter and phase noise, and ensure the clock signal is properly terminated and routed to minimize signal degradation.
The ADC32J45IRGZT has a built-in analog filter, but additional external filtering may be necessary depending on the application. Use a low-pass filter with a cutoff frequency below the Nyquist frequency (half the sampling rate) to remove high-frequency noise and aliasing.
Optimization involves adjusting the ADC's settings, such as the sampling rate, gain, and offset, to match the specific requirements of the application. Use the ADC32J45IRGZT's built-in calibration features and consult the datasheet and application notes for guidance.
The ADC32J45IRGZT has a maximum junction temperature of 125°C. Ensure reliable operation by providing adequate heat sinking, using a thermal interface material, and following the recommended PCB layout and thermal design guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC32J45IRGZT Overview

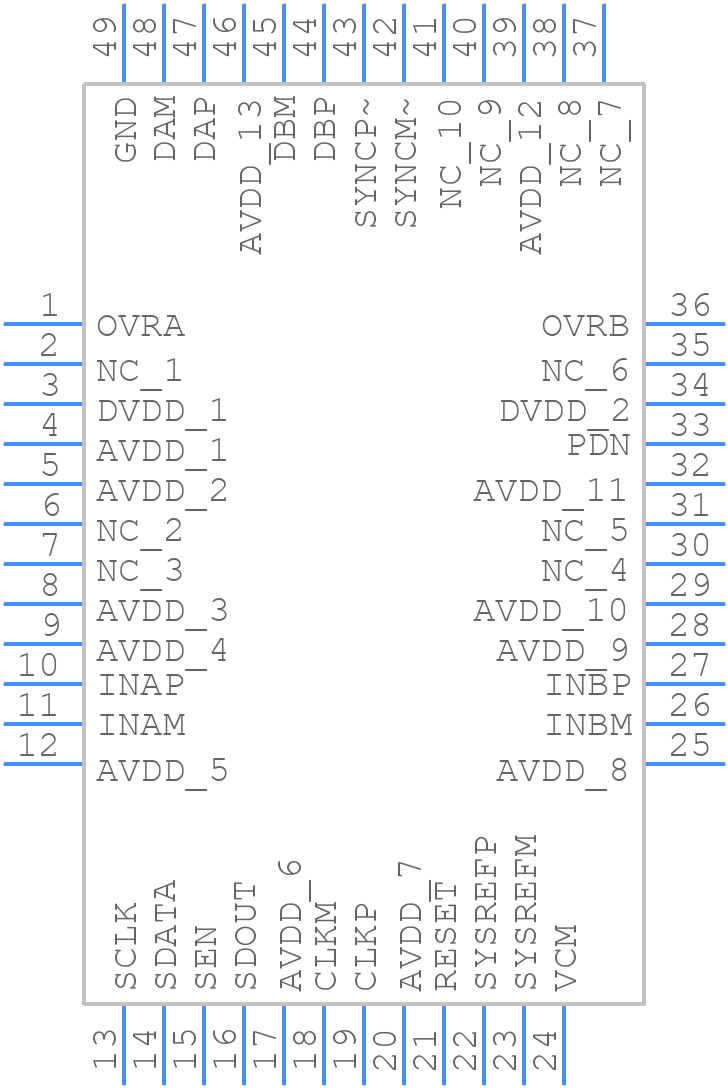

Use the download button to access the ADC32J45IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC32,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
