Texas Instruments provides a recommended layout and routing guide in the ADC34J22IRGZT Evaluation Module User's Guide (SLAU445). It's essential to follow this guide to minimize noise, ensure signal integrity, and achieve optimal performance.
The optimal clock frequency depends on the specific application requirements. Generally, a higher clock frequency provides better SNR and faster conversion rates, but it also increases power consumption. The ADC34J22IRGZT datasheet provides guidelines for selecting the clock frequency based on the desired SNR and conversion rate.
The input impedance of the ADC34J22IRGZT is relatively high, which can affect the performance if the driving source impedance is not matched. It's essential to ensure that the driving source impedance is low enough to maintain a stable input voltage and minimize distortion.
The ADC34J22IRGZT provides a parallel digital output, which can be connected to a microcontroller, FPGA, or ASIC. The output data format is binary-coded decimal (BCD), and the datasheet provides details on the output coding and formatting. The system designer should ensure that the receiving device can handle the output data rate and format.
The ADC34J22IRGZT's latency is typically around 10-15 clock cycles, depending on the operating mode. This latency should be considered when designing the system's timing and synchronization. The system designer should ensure that the ADC's latency is accounted for in the overall system timing budget.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC34J22IRGZT Overview

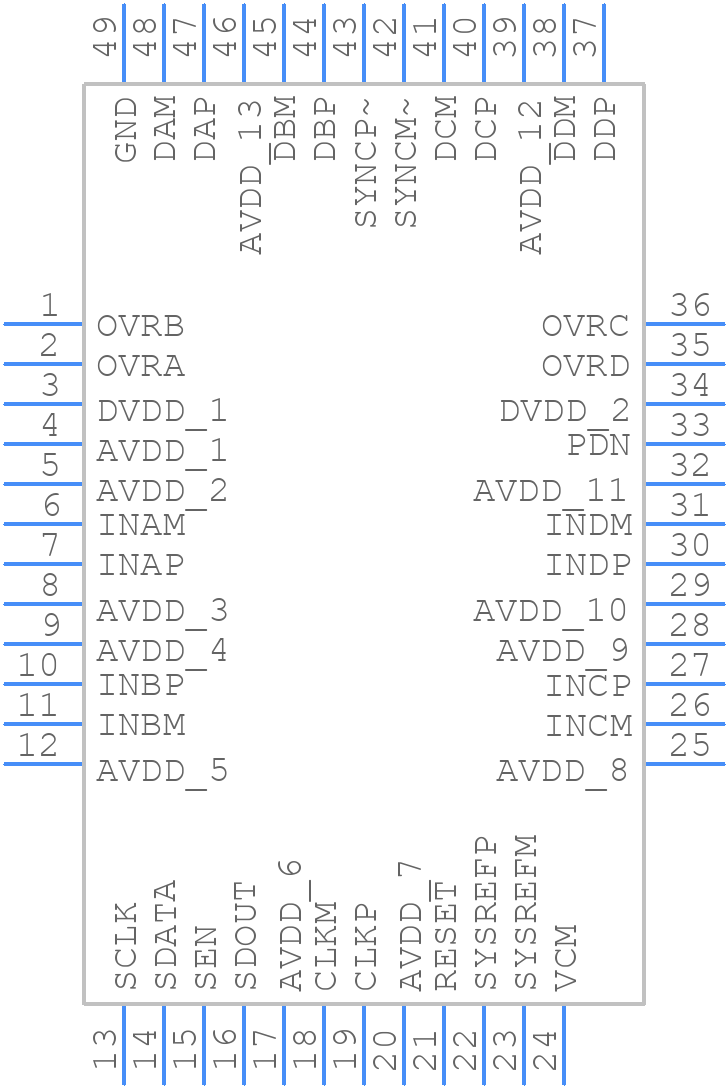

Use the download button to access the ADC34J22IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC34,
or try a keyword search, such as Analog to Digital Converters
