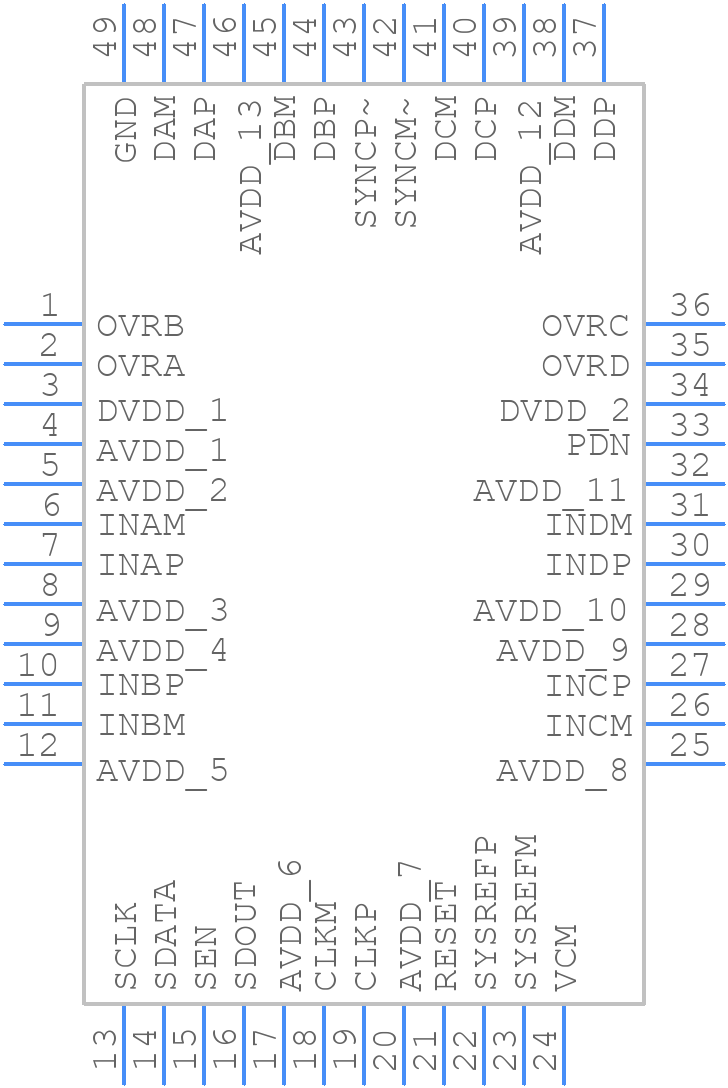

ADC34J25IRGZT - Texas Instruments

ADC34J25IRGZT Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the ADC34J25IRGZT to minimize noise and ensure optimal performance?
  Texas Instruments provides a recommended PCB layout in the ADC34J25IRGZT evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
• How do I calibrate the ADC34J25IRGZT to achieve the best possible accuracy?
  The ADC34J25IRGZT has a built-in calibration feature that can be accessed through the SPI interface. The calibration process involves writing specific registers to adjust the ADC's offset and gain. Texas Instruments provides a calibration procedure in the datasheet and application notes.
• What is the maximum sampling rate that can be achieved with the ADC34J25IRGZT, and what are the limitations?
  The ADC34J25IRGZT can sample at up to 250 MSPS, but the maximum sampling rate is limited by the clock frequency, analog input bandwidth, and digital output data rate. The datasheet provides guidelines for selecting the optimal clock frequency and analog input bandwidth for a given sampling rate.
• How do I handle metastability issues when using the ADC34J25IRGZT in a high-speed application?
  Metastability can occur when the ADC's output is not stable within the required setup and hold times. To handle metastability, Texas Instruments recommends using a synchronizer or a metastable-resistant flip-flop to resynchronize the ADC's output data with the system clock.
• What is the power consumption of the ADC34J25IRGZT, and how can I optimize it for low-power applications?
  The ADC34J25IRGZT has a typical power consumption of 1.2 W at 250 MSPS. To optimize power consumption, Texas Instruments recommends using the ADC's power-down mode, reducing the clock frequency, and optimizing the analog input signal amplitude and bandwidth.
