Texas Instruments provides a recommended PCB layout in the ADC34J44IRGZT evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
To minimize clock jitter, use a high-quality clock source, such as a crystal oscillator, and ensure that the clock signal is properly filtered and decoupled. Additionally, consider using a clock jitter attenuator or a phase-locked loop (PLL) to further reduce jitter.
The analog input of the ADC should be driven by a low-impedance source, such as an op-amp or a dedicated analog driver, to ensure that the input signal is not attenuated or distorted. Additionally, consider using a filter or a buffer to condition the input signal and reduce noise.
To ensure accurate temperature measurement, calibrate the internal temperature sensor using the calibration procedure outlined in the datasheet. Additionally, consider using an external temperature sensor or a thermocouple for more accurate temperature measurement.
The recommended power-up sequence for the ADC is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This sequence helps to ensure that the ADC powers up correctly and minimizes the risk of latch-up or other power-up issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC34J44IRGZT Overview

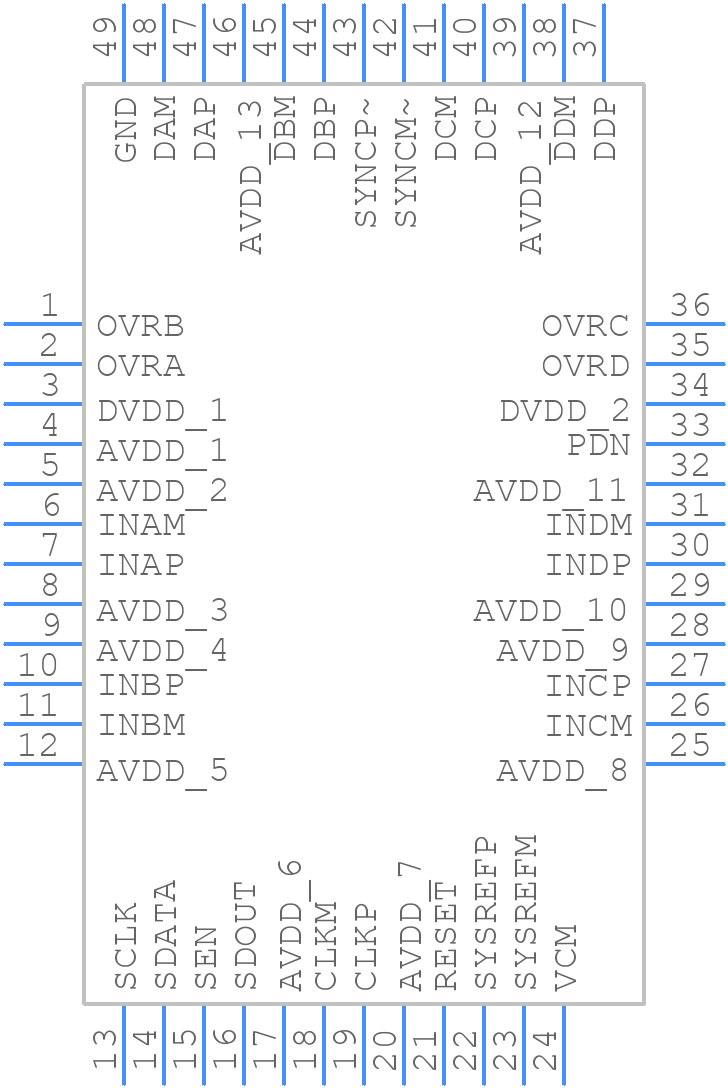

Use the download button to access the ADC34J44IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC34,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
